ATB-24D-2

Active

R-K Electronics, Inc.

RELAY TIME DELAY 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATB-24D-2

Active

R-K Electronics, Inc.

RELAY TIME DELAY 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 200.00
		5	$ 176.40
		10	$ 158.76

Description

General part information

ATB-24D Series

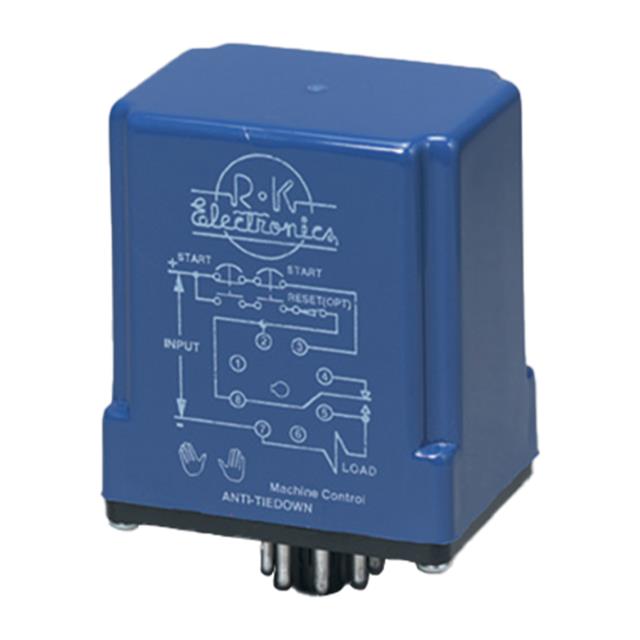

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) Delay 10A @ 120/240VAC Socketable

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATB-24D-2	ATB-24D Series

Contact Rating @ Voltage	10 A	10 A
Contact Rating @ Voltage [Max]	240 VAC	240 VAC
Contact Rating @ Voltage [Min]	120 VAC	120 VAC
Delay Time	-	0.01 - 0.1 Sec
Delay Time	-	1 - 10 s
Function	Programmable (Multi-Function)	Programmable (Multi-Function)
Mounting Type	Socketable	Socketable
Relay Type	Mechanical Relay	Mechanical Relay
Termination Style	Plug In, 8 Pin (Octal)	Plug In, 8 Pin (Octal)
Timing Adjustment Method	-	Hand Dial, Fixed
Timing Initiate Method	Input Voltage	Input Voltage
Voltage - Supply	24 VDC	24 VDC

ATB-24D Series

RELAY TIME DELAY 10SEC 10A 120V

Part	Timing Initiate Method	Mounting Type	Voltage - Supply	Relay Type	Contact Rating @ Voltage [Min]	Contact Rating @ Voltage	Contact Rating @ Voltage [Max]	Termination Style	Function	Delay Time [Min]	Delay Time [Max]	Timing Adjustment Method
R-K Electronics, Inc. ATB-24D-4-10S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.1 Sec	10 s	Hand Dial
R-K Electronics, Inc. ATB-24D-3-1S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.05 Sec	1 Sec	Fixed
R-K Electronics, Inc. ATB-24D-3-2.5S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)			Fixed
R-K Electronics, Inc. ATB-24D-3-1.5S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)			Fixed
R-K Electronics, Inc. ATB-24D-1	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)			Fixed
R-K Electronics, Inc. ATB-24D-4-1S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.05 Sec	1 Sec	Hand Dial
R-K Electronics, Inc. ATB-24D-3-5S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.05 Sec	5 Sec	Fixed
R-K Electronics, Inc. ATB-24D-2	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)
R-K Electronics, Inc. ATB-24D-4-5S	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.05 Sec	5 Sec	Hand Dial
R-K Electronics, Inc. ATB-24D-4-1M	Input Voltage	Socketable	24 VDC	Mechanical Relay	120 VAC	10 A	240 VAC	Plug In, 8 Pin (Octal)	Programmable (Multi-Function)	0.01 Min	1 Year	Hand Dial
