04-0513-10

Active

Aries Electronics

CONN SOCKET SIP 4POS GOLD

Search across all available documentation for this part.

Active

Aries Electronics

CONN SOCKET SIP 4POS GOLD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	04-0513-10	04-0513 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	10 çin	10 çin
Contact Finish Thickness - Mating	0.25 çm	0.25 çm
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Current Rating (Amps)	3 A	3 A
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	4	4
Number of Positions or Pins (Grid) [custom]	1 x 4	1 x 4
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Solder	Solder
Termination Post Length	3.18 mm	3.18 mm
Termination Post Length	0.125 in	0.125 in
Type	SIP	SIP

CONN SOCKET SIP 4POS GOLD

Part	Termination	Current Rating (Amps)	Housing Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material - Mating	Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Termination Post Length	Termination Post Length	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Pitch - Post	Pitch - Post	Material Flammability Rating	Mounting Type	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Contact Material - Post [custom]
Aries Electronics 04-0513-10T	Solder	3 A	Glass Filled, Nylon 4/6, Polyamide (PA46)	200 µin	5.08 µm	Beryllium Copper	SIP	10 çin	0.25 çm	Gold	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	2.54 mm	0.1 in	UL94 V-0	Through Hole	4	1 x 4	Brass
Aries Electronics 04-0513-10	Solder	3 A	Glass Filled, Nylon 4/6, Polyamide (PA46)	200 µin	5.08 µm	Beryllium Copper	SIP	10 çin	0.25 çm	Gold	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	2.54 mm	0.1 in	UL94 V-0	Through Hole	4	1 x 4	Brass
Aries Electronics 04-0513-10H	Solder	3 A	Glass Filled, Nylon 4/6, Polyamide (PA46)	200 µin	5.08 µm	Beryllium Copper	SIP	10 çin	0.25 çm	Gold	3.18 mm	0.125 in	0.1 in	2.54 mm	Tin	2.54 mm	0.1 in	UL94 V-0	Through Hole	4	1 x 4	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	807	$ 0.46

General part information

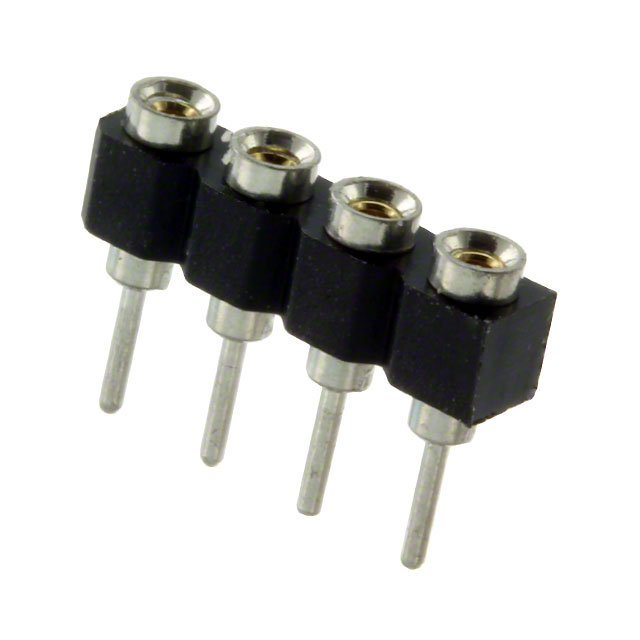

4 (1 x 4) Pos SIP Socket Gold Through Hole
