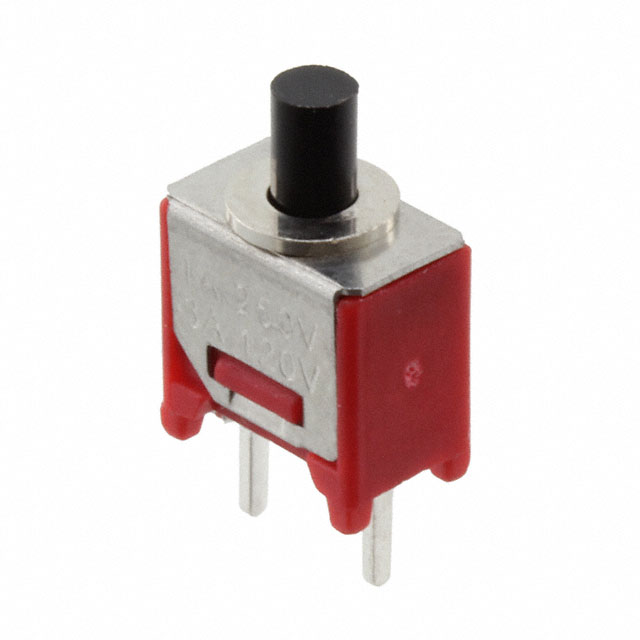

PMS9P1B10M2QE
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSH SPST-NO 3A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PMS9P1B10M2QE |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 3 A |
| Features | Sealed |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Switch Function | Off-Mom |
| Termination Style | PC Pin |
| Type | Standard |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.00 | |
| 10 | $ 3.57 | |||
| 25 | $ 3.39 | |||
| 50 | $ 3.27 | |||
| 100 | $ 3.10 | |||
| 300 | $ 2.96 | |||
| 500 | $ 2.72 | |||
| 1000 | $ 2.60 | |||
Description
General part information
PMS9P1 Series
Pushbutton Switch SPST-NO Standard Through Hole
