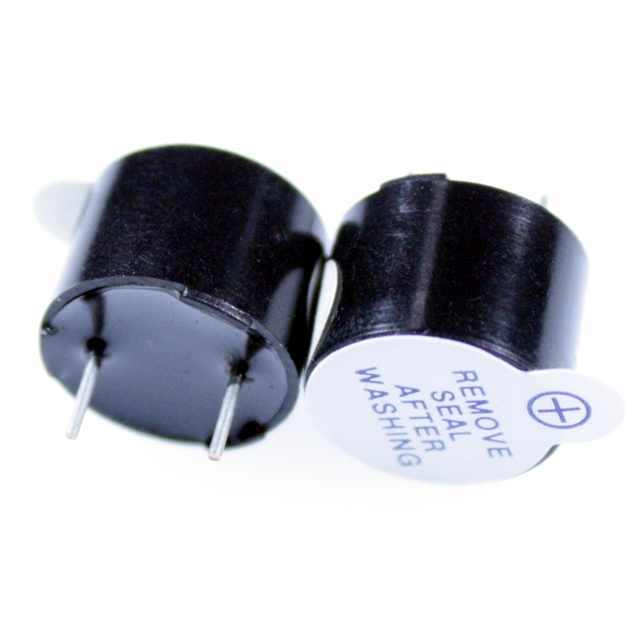

BMT1205H09

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 5V 12MM TH

Search across all available documentation for this part.

Active

BeStar Technologies, Inc.

BUZZER MAGNETIC 5V 12MM TH

Technical Specifications

Parameters and characteristics for this part

BUZZER MAGNETIC 5V 12MM TH

Part	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Sound Pressure Level (SPL)	Size / Dimension [diameter]	Size / Dimension [diameter]	Termination	Current - Supply	Port Location	Technology	Frequency
BeStar Technologies, Inc. BMT1205H09	Through Hole	0.571 in	14.5 mm	85 °C	-40 °C	5 V	8 V	4 VDC	85 dB	12 mm	0.472 in	PC Pins	50 mA	Top	Magnetic	2.4 kHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buzzers Magnetic 5 V 50mA 2.4kHz 85dB @ 5V, 10cm Through Hole PC Pins
