0009571105

Obsolete

Molex

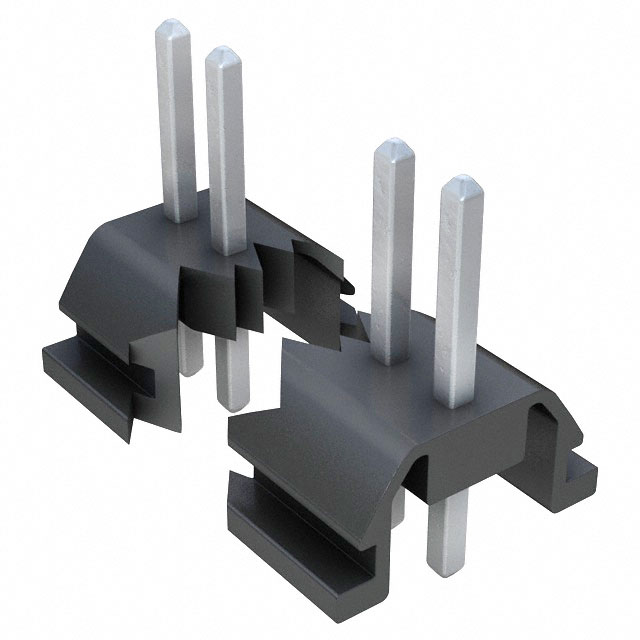

CONN HEADER VERT 10POS 3.96MM

Search across all available documentation for this part.

Obsolete

Molex

CONN HEADER VERT 10POS 3.96MM

Technical Specifications

Parameters and characteristics for this part

Specification	0009571105

Applications	Industrial, Automotive, Medical, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	60 Áin
Contact Finish Thickness - Mating	1.52 Ám
Contact Finish Thickness - Post	60 µin
Contact Finish Thickness - Post	1.52 µm
Contact Length - Mating	16 mm
Contact Length - Mating	0.63 in
Contact Length - Post [x]	0.635 in
Contact Length - Post [x]	16.13 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole, Panel Mount, Snap-In
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	35.05 mm
Overall Contact Length	1.38 in
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Unshrouded
Style	Board to Cable/Wire
Termination	Solder

Part	Applications	Mounting Type	Number of Positions	Connector Type	Termination	Style	Contact Material	Shrouding	Insulation Height	Insulation Height	Insulation Color	Contact Finish - Post	Fastening Type	Insulation Material	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]	Contact Type	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Material Flammability Rating	Contact Shape	Number of Rows
Molex 0009571045	Automotive General Purpose Industrial Medical Telecommunications	Panel Mount Snap-In Through Hole	4	Header	Solder	Board to Cable/Wire	Brass	Unshrouded	6.35 mm	0.25 in	Natural	Tin	Push-Pull	Polyamide (PA66) Nylon 6/6	0.156 in	3.96 mm	All	0.635 in	16.13 mm	Male Pin	35.05 mm	1.38 in	60 µin	1.52 µm	60 Áin	1.52 Ám	16 mm	0.63 in	UL94 V-2	Square	1
Molex 0009571105	Automotive General Purpose Industrial Medical Telecommunications	Panel Mount Snap-In Through Hole	10	Header	Solder	Board to Cable/Wire	Brass	Unshrouded	6.35 mm	0.25 in	Natural	Tin	Push-Pull	Polyamide (PA66) Nylon 6/6	0.156 in	3.96 mm	All	0.635 in	16.13 mm	Male Pin	35.05 mm	1.38 in	60 µin	1.52 µm	60 Áin	1.52 Ám	16 mm	0.63 in	UL94 V-2	Square	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Header Panel Mount, Snap-In; Through Hole 10 position 0.156" (3.96mm)
