AMPLH7020S-R20MT
ActiveAbracon LLC
IND 0.2UH 20A 2.2M
AMPLH7020S-R20MT
ActiveAbracon LLC
IND 0.2UH 20A 2.2M
Description
General part information
AMPLH7020S-R20MT

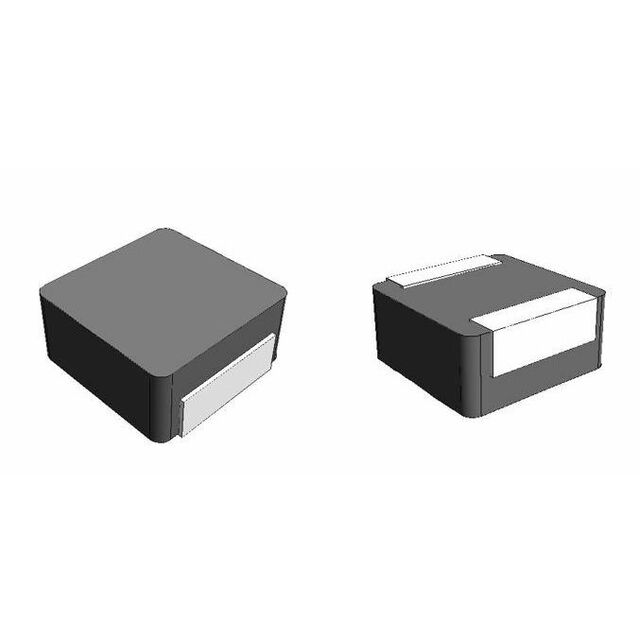

200 nH Shielded Molded Inductor 23 A 2.2mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | AMPLH7020S-R20MT |
|---|---|
| Current - Saturation (Isat) | 38 A |
| Current Rating | 23 A |
| DC Resistance (DCR) (Max) | 2.2 mOhm |
| Height - Seated (Max) | 0.079 in |
| Inductance | 200 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.26 in |
| Tolerance | 20 % |
| Type | Molded |
