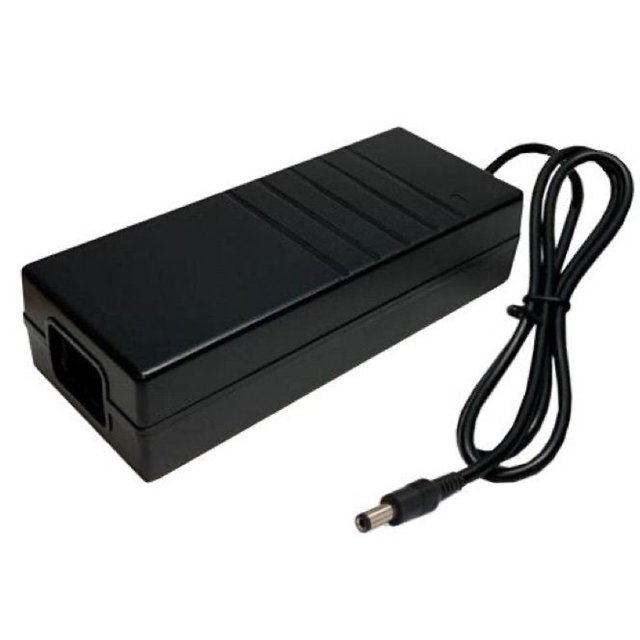

EDP125-360-MB2-110
ActiveAstrodyne TDI
AC/DC DESKTOP ADAPTER 36V 125W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EDP125-360-MB2-110
ActiveAstrodyne TDI
AC/DC DESKTOP ADAPTER 36V 125W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EDP125-360-MB2-110 |
|---|---|
| Applications | ITE (Commercial), Medical |
| Cord Length | 1.22 m |
| Cord Length | 48 in |
| Current - Output (Max) [Max] | 3.5 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C18 |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 125 W |
| Region Utilized | International |
| Size / Dimension [x] | 6 in |
| Size / Dimension [x] | 152.4 mm |
| Size / Dimension [y] | 2.48 in |
| Size / Dimension [y] | 63 mm |
| Size / Dimension [z] | 1.5 " |
| Size / Dimension [z] | 38 mm |
| Standard Number | 60950-1, 60601-1, 62368-1 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 36 V |
| Weight | 1.05 lbs |
| Weight | 475 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 113.76 | |
| 10 | $ 103.42 | |||
| 25 | $ 94.02 | |||
Description
General part information
EDP125-360-MB2-110
36V 125 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
