95CW06D3GWT

Active

Grayhill Inc.

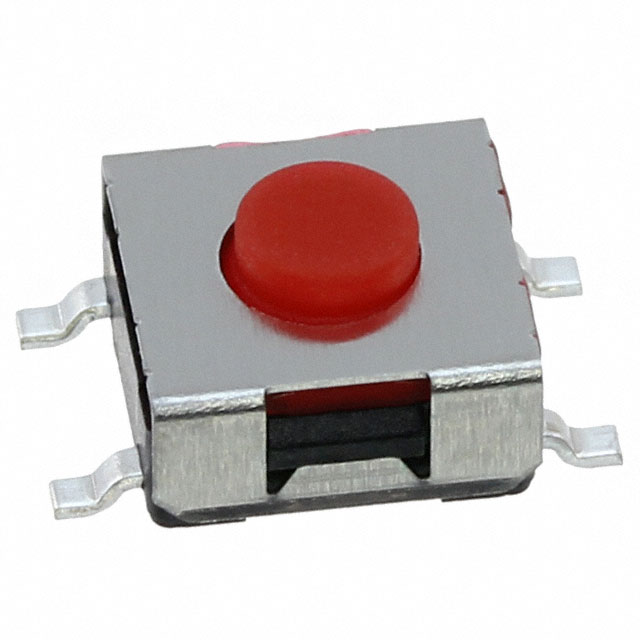

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

95CW06D3GWT

Active

Grayhill Inc.

SWITCH TACTILE SPST-NO 0.05A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.99
		10	$ 1.62
		25	$ 1.49
		100	$ 1.31
		250	$ 1.20
		500	$ 1.13
		1000	$ 1.05
		2500	$ 0.96
		5000	$ 0.90

Description

General part information

95CW06 Series

Tactile Switch SPST-NO Top Actuated Surface Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	95CW06D3GWT	95CW06 Series

Actuator Height off PCB, Vertical	3.8 mm	2.3 - 5.2 mm
Actuator Height off PCB, Vertical	-	3.1 mm
Actuator Material	Silicone Rubber	Silicone Rubber
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Washable	Washable
Illumination	Non-Illuminated	Non-Illuminated
Mechanical Life	500000 Cycles	100000 - 500000 Cycles
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Force	260 gf	180 - 520 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	6.3 mm	6.3 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.45 mm	0.45 mm
Termination Style	Gull Wing	J Lead, Gull Wing, PC Pin

95CW06 Series

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Contact Rating @ Voltage	Actuator Type	Features	Operating Force	Illumination	Mounting Type	Switch Function	Actuator Orientation	Termination Style	Actuator Height off PCB, Vertical	Circuit	Switch Travel	Outline [x]	Outline [y]	Mechanical Life	Actuator Height off PCB, Vertical [z]
Grayhill Inc. 95CW06D4JT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	520 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	3.8 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm
Grayhill Inc. 95CW06D2JT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	180 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	3.8 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06B1GWT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable		Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	Gull Wing		SPST-NO	0.45 mm	6.3 mm	6.2 mm	100000 Cycles	3.1 mm
Grayhill Inc. 95CW06C3JRT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	260 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	3.5 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06E5JT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	360 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	5.2 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06D3JRT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	260 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	3.8 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06E3GWT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	260 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	Gull Wing	5.2 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06E3T	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	260 gf	Non-Illuminated	Through Hole	Off-Mom	Top Actuated	PC Pin	5.2 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
Grayhill Inc. 95CW06A1GWRT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable		Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	Gull Wing	2.3 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	100000 Cycles
Grayhill Inc. 95CW06E2JT	70 °C	-25 °C	Silicone Rubber	0.05 A, 12 VDC	Standard	Washable	180 gf	Non-Illuminated	Surface Mount	Off-Mom	Top Actuated	J Lead	5.2 mm	SPST-NO	0.45 mm	6.3 mm	6.2 mm	500000 Cycles
