15GM7MX

Active

Switchcraft Inc.

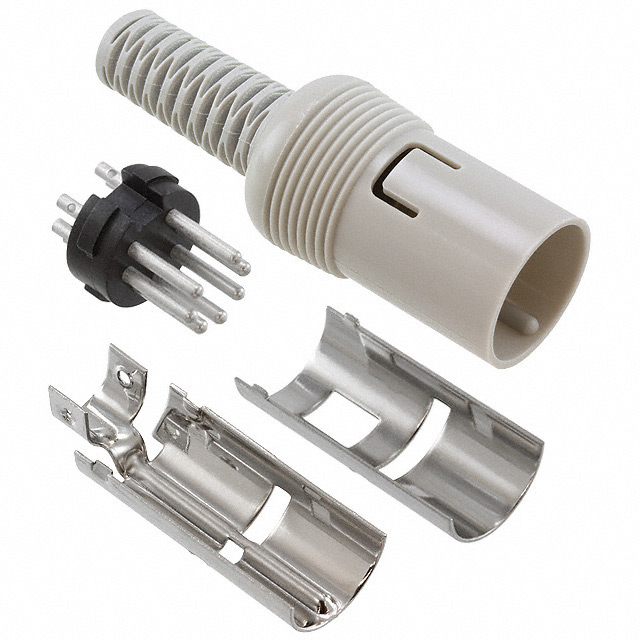

CONN PLUG MALE DIN 7POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG MALE DIN 7POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	15GM7MX

Backshell Material, Plating	Plastic
Color	Gray, Silver
Connector Type	Plug, Male Pins
Fastening Type	Push-Pull
Features	Backshell, Strain Relief, Cable Clamp
Insert Material	Plastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	7
Orientation	7
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	DIN (270 Degree)
Shielding	Shielded
Termination	Solder

CONN PLUG MALE DIN 7POS SOLDER

Part	Insert Material	Termination	Mounting Type	Number of Positions	Shell Finish	Features	Connector Type	Shell Size - Insert	Orientation	Shielding	Shell Material	Backshell Material, Plating	Fastening Type	Color	Primary Material
Switchcraft Inc. 15GM7MX	Plastic	Solder	Free Hanging (In-Line)	7	Nickel	Backshell, Cable Clamp, Strain Relief	Male Pins, Plug	DIN (270 Degree)	7	Shielded	Zinc Die Cast	Plastic	Push-Pull	Gray, Silver	Metal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Plug, Male Pins Solder
