104990117

Obsolete

Seeed Technology Co., Ltd

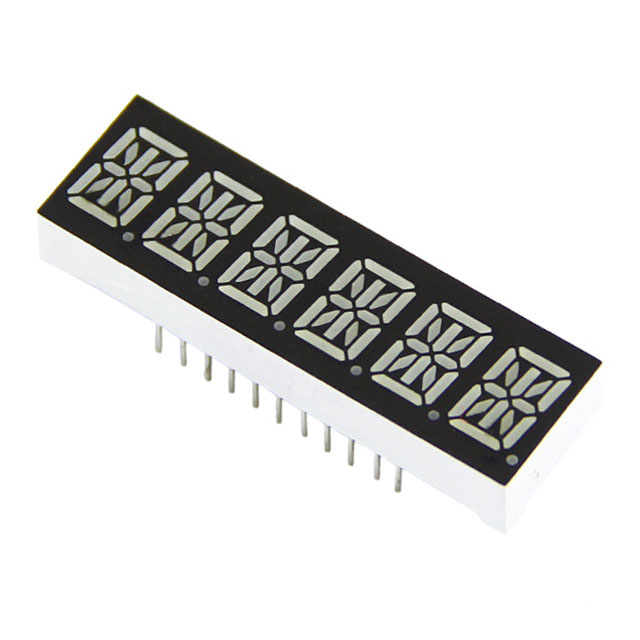

DISPLAY 14-SEG 0.4" 6 DIGIT RED

Deep-Dive with AI

Search across all available documentation for this part.

104990117

Obsolete

Seeed Technology Co., Ltd

DISPLAY 14-SEG 0.4" 6 DIGIT RED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	104990117	104990 Series

Color	Red	White, Red, Yellow-Green, Yellow, Green, Amber
Common Pin	Common Cathode	Common Anode, Common Cathode
Current - Test	-	10 - 20 mA
Digit/Alpha Size	10.16 mm	10.16 - 20.32 mm
Digit/Alpha Size	-	0.54 - 0.8 in
Digit/Alpha Size [custom]	0.4 in	0.4 in
Display Type	14-Segment, Alphanumeric	16-Segment, Alphanumeric, 14-Segment, Alphanumeric
Millicandela Rating	-	8 - 250 mcd
Number of Characters	6	2 - 6
Number of Characters	-	1
Package / Case	-	15.24 mm
Package / Case	-	0.6 in
Package / Case	-	18-DIP
Package / Case	-	0.6 - 17 Leads
Power Dissipation (Max)	-	50 - 100 mW
Size / Dimension	-	20 - 21.2 mm
Size / Dimension	-	25.1 - 27.7 mm
Size / Dimension	-	0.335 "
Size / Dimension	-	0.787 - 0.835 in
Size / Dimension	-	0.988 - 1.091 in
Size / Dimension	-	8.5 mm
Voltage - Forward (Vf) (Typ)	-	1.8 - 3.2 V
Wavelength - Peak	-	465 - 633 nm
Wavelength - Peak	-	640 nm

104990 Series

DISPLAY 16SEG 0.8" SGL WHT 18DIP

Part	Voltage - Forward (Vf) (Typ)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Color	Package / Case	Package / Case	Package / Case	Number of Characters [custom]	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Current - Test	Wavelength - Peak	Common Pin	Display Type	Digit/Alpha Size [custom]	Number of Characters	Power Dissipation (Max) [Max]	Package / Case	Wavelength - Peak [custom]
Seeed Technology Co., Ltd 104990130	3 V	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	White	15.24 mm	0.6 in	18-DIP	1	20.32 mm	0.8 in	85.5 mcd	10 mA	465 nm	Common Anode	16-Segment, Alphanumeric
Seeed Technology Co., Ltd 104990117								Red					10.16 mm					Common Cathode	14-Segment, Alphanumeric	0.4 in	6
Seeed Technology Co., Ltd 104990123	2.2 V	21.2 mm	25.1 mm	0.335 "	0.835 in	0.988 in	8.5 mm	Yellow-Green			18-DIP		13.72 mm	0.54 in	18 mcd	20 mA	571 nm	Common Anode	14-Segment, Alphanumeric		2	50 mW	0.6 in, 15.24 mm, 17 Leads
Seeed Technology Co., Ltd 104990132								Yellow	15.24 mm	0.6 in	18-DIP	1	20.32 mm	0.8 in				Common Anode	16-Segment, Alphanumeric
Seeed Technology Co., Ltd 104990131	3.2 V	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	Green	15.24 mm	0.6 in	18-DIP	1	20.32 mm	0.8 in	250 mcd	10 mA	517 nm	Common Anode	16-Segment, Alphanumeric
Seeed Technology Co., Ltd 104990121	2 V	21.2 mm	25.1 mm	0.335 "	0.835 in	0.988 in	8.5 mm	Amber	15.24 mm	0.6 in	18-DIP		13.72 mm	0.54 in	105 mcd	20 mA	603 nm	Common Cathode	14-Segment, Alphanumeric		2	50 mW
Seeed Technology Co., Ltd 104990122	2 V	21.2 mm	25.1 mm	0.335 "	0.835 in	0.988 in	8.5 mm	Red			18-DIP		13.72 mm	0.54 in	25 mcd	20 mA	633 nm	Common Cathode	14-Segment, Alphanumeric		2	50 mW	0.6 in, 15.24 mm, 17 Leads
Seeed Technology Co., Ltd 104990119	1.8 V	20 mm	27.7 mm	0.335 "	0.787 in	1.091 in	8.5 mm	Red	15.24 mm	0.6 in	18-DIP	1	20.32 mm	0.8 in	8 mcd	10 mA		Common Cathode	16-Segment, Alphanumeric			100 mW		640 nm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

104990 Series

Display Modules - LED Character and Numeric Red 14-Segment, Alphanumeric 6 Character Common Cathode

Documents

Technical documentation and resources

No documents available
