Technical Specifications
Parameters and characteristics for this part
| Specification | RNF14FTC422R |
|---|---|
| Composition | Metal Film |
| Features | Flame Retardant Coating, Safety |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 422 Ohm |
| Size / Dimension Diameter | 0.093 in |
| Size / Dimension Length | 0.25 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | Updated |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.02 | <1d |
CAD
3D models and CAD resources for this part
Description
General part information

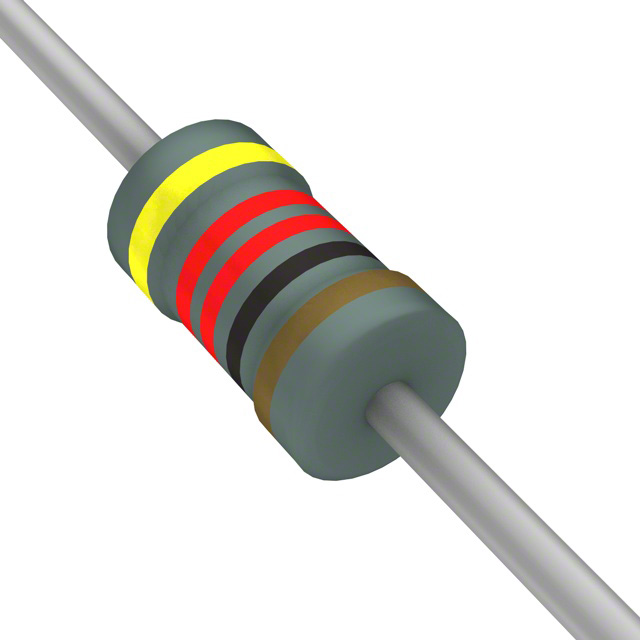

RNF14FTC422R
422 Ohms ±1% 0.25W, 1/4W Through Hole Resistor Axial Flame Retardant Coating, Safety Metal Film
