NTCDP4AG103HCFCBA
ActiveTDK Corporation

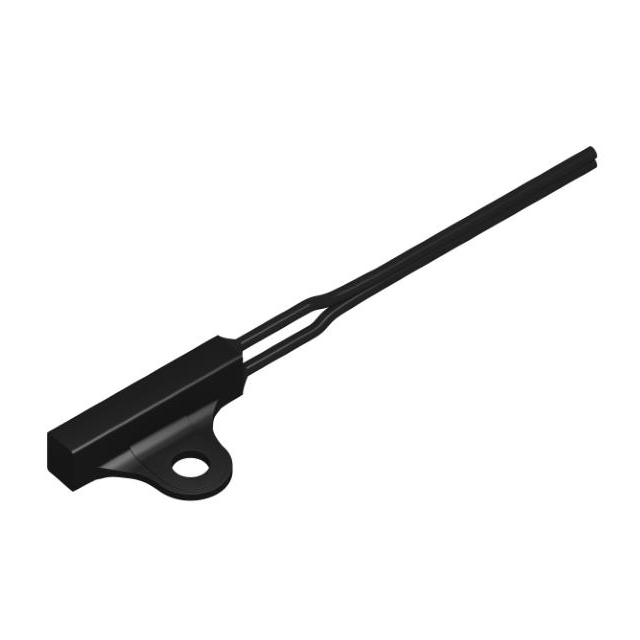

NTC ASSEMBLY, EPOXY CASE WITH SC
NTCDP4AG103HCFCBA
ActiveTDK Corporation
NTC ASSEMBLY, EPOXY CASE WITH SC
Description
General part information
NTCDP4AG103HCFCBA
NTC Thermistor 10k Bead with Terminal
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCDP4AG103HCFCBA |
|---|---|
| B Value (25/85) | 4000 K |
| B Value Tolerance | 2 % |
| Length - Lead Wire | 15.75 in |
| Mounting Type | Free Hanging |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Bead with Terminal |
| Power - Max | 26.4 mW |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 3 % |
