KMAH1-15-1-C-S1-HE
ActiveTE Connectivity AMP Connectors

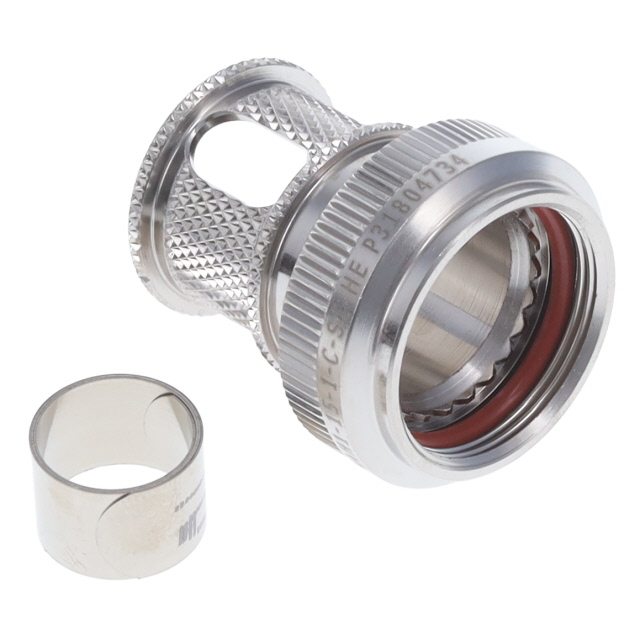

CONN BACKSHELL SZ15 SILVER M22
Deep-Dive with AI
Search across all available documentation for this part.
KMAH1-15-1-C-S1-HE
ActiveTE Connectivity AMP Connectors
CONN BACKSHELL SZ15 SILVER M22
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | KMAH1-15-1-C-S1-HE |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 0.642 in, 0.894 in |
| Cable Opening [custom] | 16.3 mm, 22.7 mm |
| Color | Silver |
| Diameter - Outside [diameter] | 1.142 in |
| Diameter - Outside [diameter] | 29 mm |
| For Use With/Related Products | MIL-DTL-38999 Series III, IV |
| Material | Aluminum Alloy |
| Plating | Electroless Nickel |
| Shell Size - Insert | 15 |
| Shielding | Shielded |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 137.72 | |
| 10 | $ 131.11 | |||
KMAH1 Series
CONN BACKSHELL SZ15 SILVER M22
| Part | Cable Opening [custom] | Cable Opening [custom] | Type | For Use With/Related Products | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Cable Exit | Shell Size - Insert | Shielding | Plating | Color | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors KMAH1-15-1-C-S1-HE | 0.642 in, 0.894 in | 16.3 mm, 22.7 mm | Backshell | MIL-DTL-38999 Series III, IV | 1.142 in | 29 mm | 180 ° | 15 | Shielded | Electroless Nickel | Silver | Aluminum Alloy |
Description
General part information
KMAH1 Series
Silver Connector Backshell M22x1 15
Documents
Technical documentation and resources
No documents available
