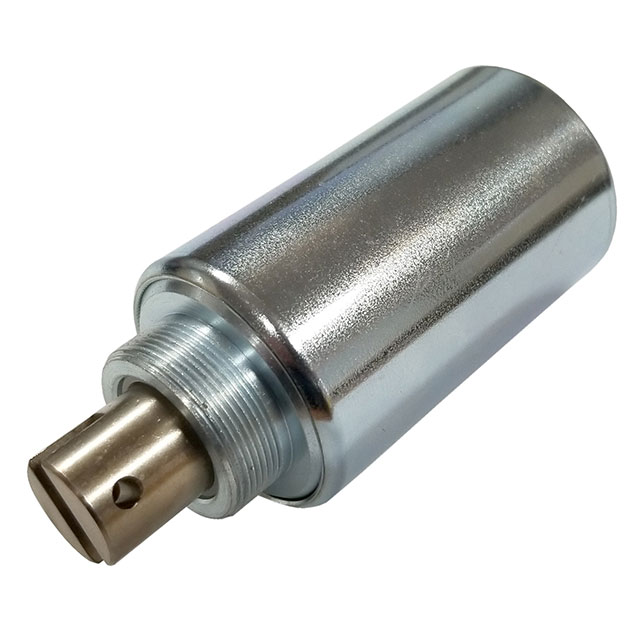

154660-227

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

STA SIZE 150 PULL - 24 VDC CD

Search across all available documentation for this part.

Active

Ledex Dormeyer Saia, a Division of Johnson Electric

STA SIZE 150 PULL - 24 VDC CD

Technical Specifications

Parameters and characteristics commom to parts in this series

STA SIZE 150 PULL - 24 VDC CD

Part	Type	Technology	Shaft Detail	Voltage - Rated	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Power (Watts)	Duty Cycle	DC Resistance (DCR)	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Termination Style	Bushing Thread
Ledex Dormeyer Saia, a Division of Johnson Electric 154660-227	Closed Frame (Pull), Tubular	Electromechanical	Clevis	25 VDC	65 mm	1.52 in	38.6 mm	2.56 in	17 W	Continuous	36.9 Ohm	0.625 in	15.88 mm	Wire Leads	1-27 UNS
Ledex Dormeyer Saia, a Division of Johnson Electric 154660-224	Closed Frame (Pull), Tubular	Electromechanical	Clevis	12.4 VDC	65 mm	1.52 in	38.6 mm	2.56 in	17 W	Continuous	9.3 Ohm	0.625 in	15.88 mm	Wire Leads	1-27 UNS

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Continuous Duty Solenoid Closed Frame (Pull), Tubular Type Stroke 25VDC Panel Mount
