710-0003-06

Active

Schmartboard, Inc.

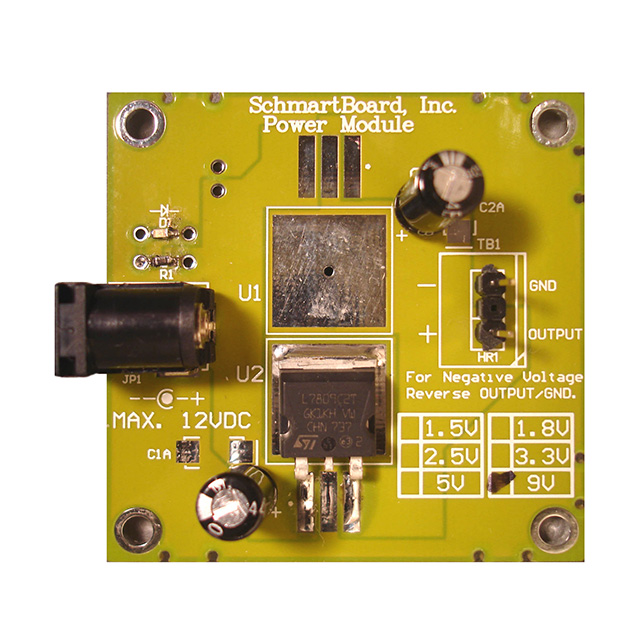

9 VOLT POPULATED SINGLE VOLTAGE

Search across all available documentation for this part.

Active

Schmartboard, Inc.

9 VOLT POPULATED SINGLE VOLTAGE

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Channels per IC	Board Type	Supplied Contents	Voltage - Input	Voltage - Output	Regulator Type
Schmartboard, Inc. 710-0003-01	TLV1117-15	1 - Single	Fully Populated	Board(s)	12 VDC	1.5 V	Positive Fixed
Schmartboard, Inc. 710-0003-04	TLV1117-33	1 - Single	Fully Populated	Board(s)	12 VDC	3.3 V	Positive Fixed
Schmartboard, Inc. 710-0003-06	KA78R09C	1 - Single	Fully Populated	Board(s)	12 VDC	9 V	Positive Fixed
Schmartboard, Inc. 710-0003-02	TLV1117-18	1 - Single	Fully Populated	Board(s)	12 VDC	1.8 V	Positive Fixed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

KA78R09C 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board

Technical documentation and resources
