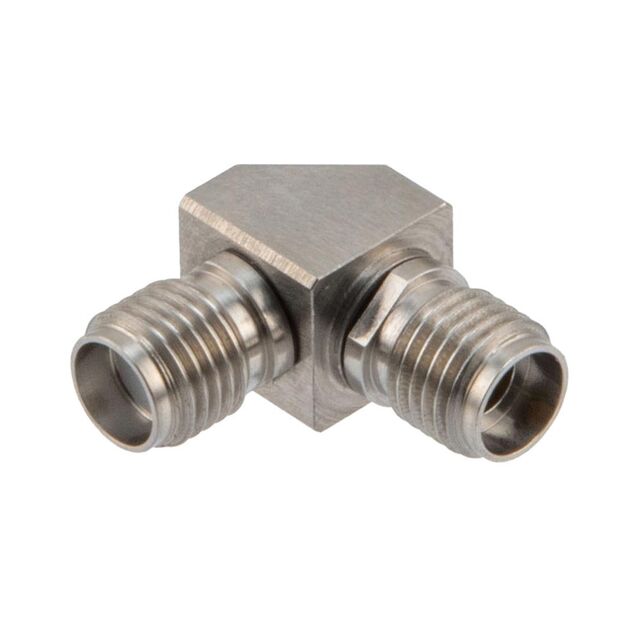

FMAD1565
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.2 VSWR
FMAD1565
ActiveFairview Microwave
ADAPT JACK-JACK SMA SS 1.2 VSWR
Description
General part information
FMAD1565
Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To SMA Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAD1565 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 2.92 mm |
| Adapter Type | Jack to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Jack Size | 2.92 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | SMA Jack |
| Dielectric Material | Polyphenylene Oxide (PPO) |
| Fastening Type | Threaded |
| Frequency - Max | 27 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Style | Right Angle |
