PE4169
ActivePasternack
75 OHM SMC JACK BULKHEAD MOUNT C
PE4169
ActivePasternack
75 OHM SMC JACK BULKHEAD MOUNT C
Description
General part information
PE4169

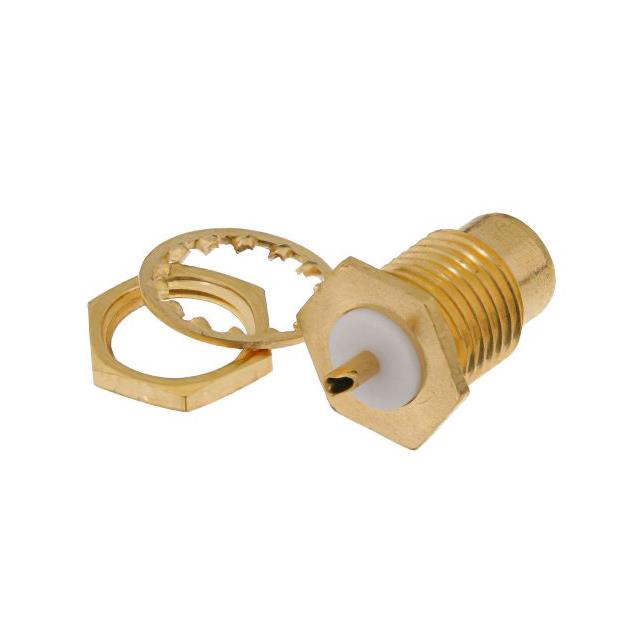

SMC Connector Jack, Male Pin 75 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4169 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | SMC |
| Connector Type | Jack, Male Pin |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Housing Color | Gold |
| Impedance | 75 Ohm |
| Mounting Feature | Bulkhead, Front Side Nut |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
