MKS4G033304F00KSSD

Active

WIMA

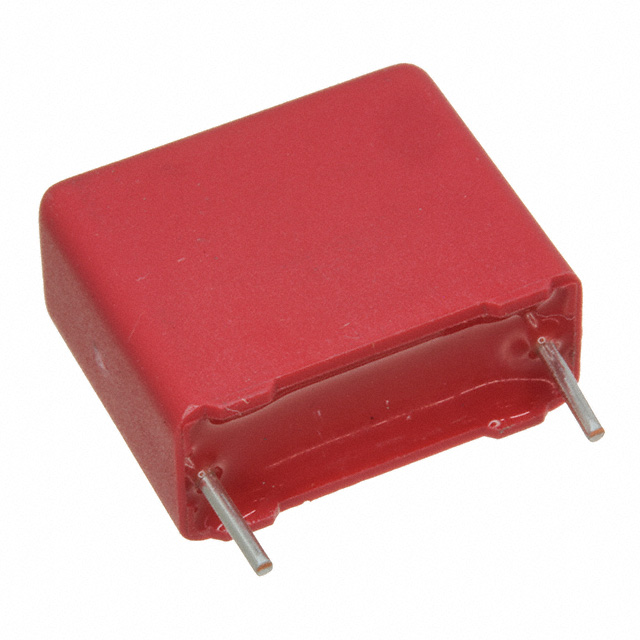

CAP FILM 0.33UF 10% 400VDC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MKS4G033304F00KSSD

Active

WIMA

CAP FILM 0.33UF 10% 400VDC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MKS4G033304F00KSSD	MKS4G0 Series

Applications	Automotive, DC Link, DC Filtering	Automotive, DC Link, DC Filtering, General Purpose
Capacitance	0.33 µF	0.022 - 100000 µF
Dielectric Material	Polyethylene Terephthalate (PET), Metallized, Polyester	Polyethylene Terephthalate (PET), Metallized, Polyester
Height - Seated (Max)	-	0.335 - 16.51 in
Height - Seated (Max)	-	8.5 - 46 mm
Height - Seated (Max) [Max]	15 mm	9 - 19 mm
Height - Seated (Max) [Max]	0.591 "	0.354 - 0.748 "
Lead Spacing	15 mm	7.5 - 37.5 mm
Lead Spacing	0.591 in	0.295 - 1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Radial	Radial
Ratings	AEC-Q200	AEC-Q200
Size / Dimension [x]	0.709 in	0.394 - 1.634 in
Size / Dimension [x]	18 mm	10 - 41.5 mm
Size / Dimension [y]	0.315 in	0.118 - 1.22 in
Size / Dimension [y]	8 mm	3 - 31 mm
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 20 %
Voltage Rating - AC	200 V	200 V
Voltage Rating - DC	400 V	400 V

MKS4G0 Series

CAP FILM 0.47UF 5% 400VDC RADIAL

...

Part	Applications	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Package / Case	Voltage Rating - AC	Mounting Type	Termination	Dielectric Material	Capacitance	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
WIMA MKS4G034705B00JB00	Automotive, DC Filtering, DC Link	5 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.47 µF	22.5 mm	0.886 in	15 mm	0.591 "	0.236 in	6 mm	1.043 in	26.5 mm	400 V
WIMA MKS4G021502B00KD00	Automotive, DC Filtering, DC Link	10 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	15000 pF	7.5 mm	0.295 in			0.118 in	3 mm	0.394 "	10 mm	400 V	0.335 in	8.5 mm
WIMA MKS4G021502B00MSC9	Automotive, DC Filtering, DC Link	20 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	15000 pF	7.5 mm	0.295 in			0.118 in	3 mm	0.394 "	10 mm	400 V	0.335 in	8.5 mm
WIMA MKS4G022202C00JF00	Automotive, DC Filtering, DC Link	5 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.022 µF	7.5 mm	0.295 in	9 mm	0.354 in	0.157 in	4 mm	0.394 "	10 mm	400 V
WIMA MKS4G021503C00KF00	Automotive, DC Filtering, DC Link	10 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	15000 pF	10 mm	0.394 in	9 mm	0.354 in	0.157 in	4 mm	0.512 in	13 mm	400 V
WIMA MKS4G022202C00JI00	Automotive, DC Filtering, DC Link	5 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	0.022 µF	7.5 mm	0.295 in	9 mm	0.354 in	0.157 in	4 mm	0.394 "	10 mm	400 V
WIMA MKS4G041506B00KSC9	Automotive, DC Filtering, DC Link	10 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	1.5 µF	27.5 mm	1.083 in							400 V	0.827 "	21 mm
WIMA MKS4G041005G00MSSD	Automotive, DC Filtering, DC Link	20 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	1 µF	22.5 mm	0.886 in	19 mm	0.748 in	0.413 in	10.5 mm	1.043 in	26.5 mm	400 V
WIMA MKS4G021503C00MI00	Automotive, DC Filtering, DC Link	20 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	15000 pF	10 mm	0.394 in	9 mm	0.354 in	0.157 in	4 mm	0.512 in	13 mm	400 V
WIMA MKS4G041505I00MSSD	Automotive, DC Filtering, DC Link	20 %	-55 °C	125 °C	AEC-Q200	Radial	200 V	Through Hole	PC Pins	Metallized, Polyester, Polyethylene Terephthalate (PET)	1.5 µF	22.5 mm	0.886 in			0.433 in	11 mm	1.043 in	26.5 mm	400 V	0.827 "	21 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.68
		10	$ 0.49
		50	$ 0.43
		100	$ 0.35
		500	$ 0.28
		1200	$ 0.28

Description

General part information

MKS4G0 Series

0.33 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
