6037754
ActiveSICK, Inc.

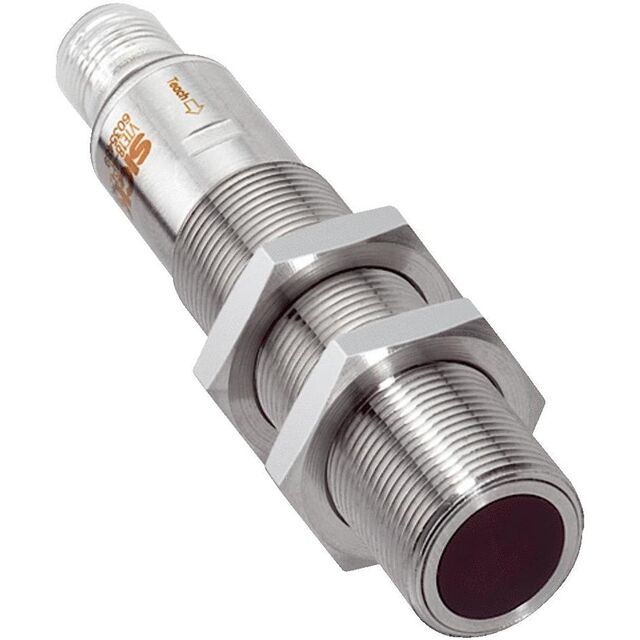

CYLINDRICAL PHOTOELECTRIC SENSOR
6037754
ActiveSICK, Inc.
CYLINDRICAL PHOTOELECTRIC SENSOR
Description
General part information
6037754
Proximity Optical Sensor 0" ~ 3.937" (0mm ~ 100mm) PNP - Dark-ON/Light-ON
Technical Specifications
Parameters and characteristics for this part
| Specification | 6037754 |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector, M12 |
| Ingress Protection | IP67 |
| Light Source | Red |
| Light Source Wavelength (Red) | 660 nm |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Output Configuration | Light-ON, PNP - Dark-ON |
| Response Time | 1.25 ms |
| Sensing Distance Maximum | 3.937 " |
| Sensing Distance Minimum | 0 cm |
| Sensing Method | Proximity |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
