8020.0609.H

Active

SCHURTER Inc.

FUSE CERM 50A 250VAC 70VDC 3AB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8020.0609.H

Active

SCHURTER Inc.

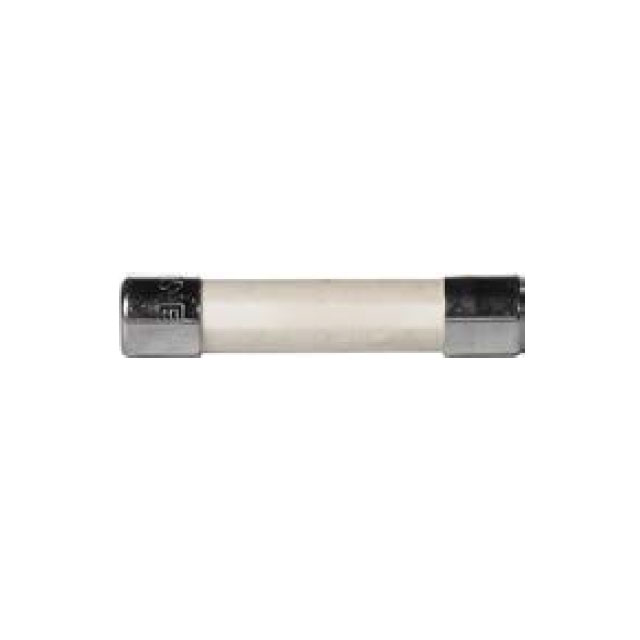

FUSE CERM 50A 250VAC 70VDC 3AB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 1.73
		5	$ 1.65
		10	$ 1.57
		50	$ 1.27
		100	$ 1.07
		250	$ 1.05
		500	$ 0.88
		1000	$ 0.78
		5000	$ 0.69

Description

General part information

SUT-H-6332 Series

50 A 250 V AC 70 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	8020.0609.H	SUT-H-6332 Series

Approval Agency	UL, CSA, CE, cURus	UL, CSA, CE, cURus
Breaking Capacity @ Rated Voltage	500 A	500 A
Current Rating (Amps)	50 A	10 - 50 A
Fuse Type	Cartridge, Ceramic	Cartridge, Ceramic
Melting I˛t	-	788 - 9908
Melting I²t	9908	1058 - 9908
Mounting Type	Requires Holder	Through Hole, Requires Holder
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	3AB, 3AG	3AG, 3AB
Package / Case [x]	1/4	1/4
Package / Case [y]	1-1/4	1-1/4
Response Time	Slow Blow	Slow Blow
Size / Dimension	-	1.291 "
Size / Dimension	-	32.8 mm
Size / Dimension [diameter]	6.35 mm	6.35 - 6.85 mm
Size / Dimension [diameter]	0.25 in	0.25 - 0.27 in
Size / Dimension [z]	1.252 in	1.252 in
Size / Dimension [z]	31.8 mm	31.8 mm
Voltage Rating - AC	250 V	250 V
Voltage Rating - DC	70 V	70 - 100 V

SUT-H-6332 Series

FUSE CERM 15A 250VAC 100VDC 3AB

Part	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Response Time	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Fuse Type	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Melting I˛t	Package / Case [x]	Package / Case [y]	Package / Case	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Melting I²t	Size / Dimension [z]	Size / Dimension [z]
SCHURTER Inc. 8020.0604.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	15 A	Through Hole	1058	1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C
SCHURTER Inc. 8020.0607.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	30 A	Through Hole		1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C	2475
SCHURTER Inc. 8020.0609.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	70 V	50 A	Through Hole	9908	1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C
SCHURTER Inc. 8020.0607.H		0.25 in	6.35 mm		Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	30 A	Requires Holder	2475	1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C		1.252 in	31.8 mm
SCHURTER Inc. 8020.0603.H		0.25 in	6.35 mm		Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	12 A	Requires Holder	788	1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C		1.252 in	31.8 mm
SCHURTER Inc. 8020.0606.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	25 A	Through Hole		1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C	5275
SCHURTER Inc. 8020.0602.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	10 A	Through Hole		1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C
SCHURTER Inc. 8020.0605.H.PT	1.291 "	0.27 in	6.85 mm	32.8 mm	Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	20 A	Through Hole	3540	1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C
SCHURTER Inc. 8020.0605.H		0.25 in	6.35 mm		Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	20 A	Requires Holder		1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C	3540	1.252 in	31.8 mm
SCHURTER Inc. 8020.0604.H		0.25 in	6.35 mm		Slow Blow	500 A	250 V	Cartridge, Ceramic	100 V	15 A	Requires Holder		1/4	1-1/4	3AB, 3AG	CE, CSA, cURus, UL	85 °C	-40 °C	1058	1.252 in	31.8 mm
