9947 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 15 CONDUCTOR, 22 AWG, 100 FT, 30.48 M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

9947 060100

Active

Belden Inc.

MULTICONDUCTOR CABLE, COMPUTER, SHIELDED, 15 CONDUCTOR, 22 AWG, 100 FT, 30.48 M

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9947 060100

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.34 in
Jacket (Insulation) Diameter [diameter]	8.64 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.889 mm
Jacket (Insulation) Thickness	0.035 in
Jacket Color	Chrome
Length [x]	30.5 m
Length [x]	100 ft
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Computer
Wire Gauge	22 AWG

9947 Series

Part	Wire Gauge	Conductor Insulation	Shield Material	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Shield Coverage	Cable Type	Jacket Color	Voltage	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Number of Conductors	Shield Type	Conductor Material	Length [x]	Length [x]	Jacket (Insulation) Material
Belden Inc. 9947 060500	22 AWG	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned	UL Style 2464	7	30 AWG	65 % 100 %	Multi-Conductor	Chrome	300 V	Computer	-30 ░C	80 C	0.889 mm	0.035 in	0.34 in	8.64 mm	15	Braid Foil	Copper Tinned	500 '	152.4 m	Poly-Vinyl Chloride (PVC)
Belden Inc. 9947 060100	22 AWG	Poly-Vinyl Chloride (PVC)	Aluminum Copper Tinned		7	30 AWG	65 % 100 %	Multi-Conductor	Chrome		Computer	-30 ░C	80 C	0.889 mm	0.035 in	0.34 in	8.64 mm	15	Braid Foil	Copper Tinned	100 ft	30.5 m	Poly-Vinyl Chloride (PVC)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	100	$ 9.32
		200	$ 8.86
		300	$ 8.60
		500	$ 8.28
		700	$ 8.07
		1000	$ 7.86
Newark	Spool of 100	1	$ 1119.69
		5	$ 1076.39
		10	$ 1039.27

Description

General part information

9947 Series

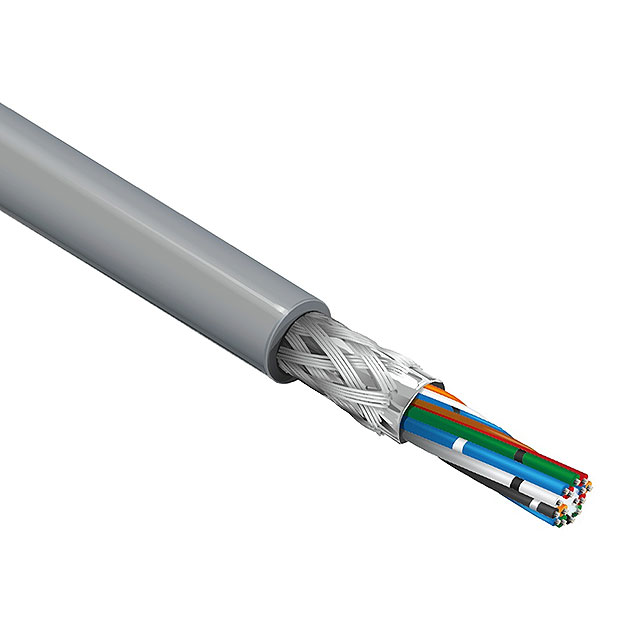

The 9947 060100 is a 100ft 15-conductor shielded Computer Cable with 22AWG stranded (7 x 30) tinned copper conductors, S-R PVC insulation, overall Beldfoil® aluminum foil-polyester tape (100% coverage) + tinned copper braid shield (65% coverage) and chrome PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms. This computer cable is designed for EIA RS-232 applications.
