TSJW-3.8-260-TR

Active

E-Switch

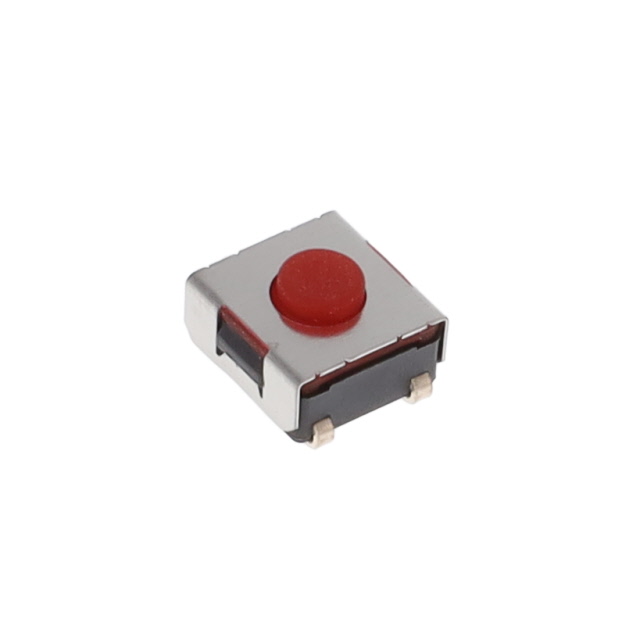

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TSJW-3.8-260-TR	TSJW-3.8 Series

Actuator Height off PCB, Vertical	3.8 mm	3.8 mm
Actuator Material	Silicone Rubber	Silicone Rubber
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Standard	Standard
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC	0.05 - 12 A
Features	Washable	Washable
Illumination	Non-Illuminated	Non-Illuminated
Mounting Type	Surface Mount	Surface Mount
Operating Force	260 gf	260 gf
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-20 C	-20 C
Outline [x]	6.3 mm	6.3 mm
Outline [y]	6.2 mm	6.2 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	J Lead	J Lead

SWITCH TACTILE SPST-NO 0.05A 12V

Part	Contact Rating @ Voltage	Actuator Type	Termination Style	Features	Actuator Material	Actuator Orientation	Illumination	Switch Function	Mounting Type	Circuit	Outline [x]	Outline [y]	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Height off PCB, Vertical	Operating Force
E-Switch TSJW-3.8-360-B	0.05 A, 12 VDC	Standard	J Lead	Washable	Silicone Rubber	Top Actuated	Non-Illuminated	Off-Mom	Surface Mount	SPST-NO	6.3 mm	6.2 mm	-20 C	70 °C	3.8 mm
E-Switch TSJW-3.8-360-TR	0.05 A, 12 VDC	Standard	J Lead	Washable	Silicone Rubber	Top Actuated	Non-Illuminated	Off-Mom	Surface Mount	SPST-NO	6.3 mm	6.2 mm	-20 C	70 °C	3.8 mm
E-Switch TSJW-3.8-260-TR	0.05 A, 12 VDC	Standard	J Lead	Washable	Silicone Rubber	Top Actuated	Non-Illuminated	Off-Mom	Surface Mount	SPST-NO	6.3 mm	6.2 mm	-20 C	70 °C	3.8 mm	260 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
