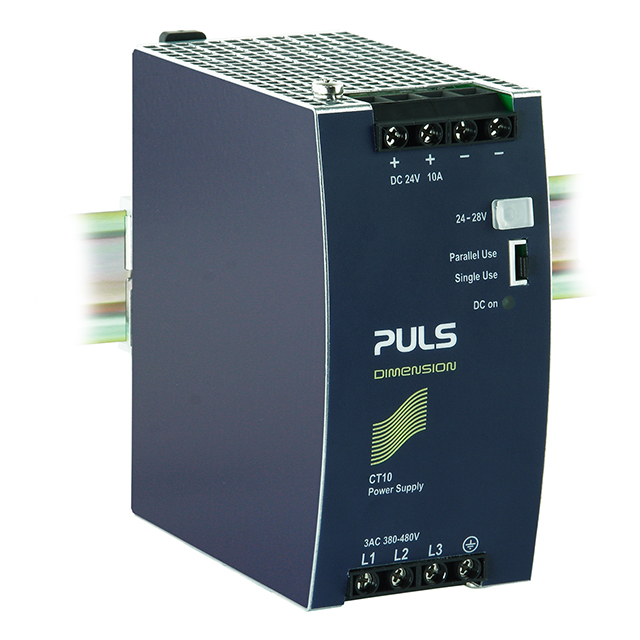

CT10.241

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 382.50

General part information

AC/DC DIN RAIL SUPPLY 24V 240W

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CT10.241	CT10 Series

AC Voltage - Input [Max]	576 VAC	480 - 576 VAC
AC Voltage - Input [Min]	323 VAC	323 - 380 VAC
Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	SEMI, DNV GL, CSA, EAC, UL, ABS, IEC	SEMI, DNV GL, CSA, EAC, UL, ABS, IEC
Current - Output (Max) [Max]	10.8 A	5 - 10.8 A
Features	Adjustable Output, Load Sharing	Adjustable Output, Load Sharing, Conformal Coating
Input Type	AC	AC
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	-25 - 0 °C
Power (Watts)	240 W	240 W
Size / Dimension [x]	4.61 "	4.61 "
Size / Dimension [x]	117 mm	117 mm
Size / Dimension [y]	62 mm	62 mm
Size / Dimension [y]	2.44 "	2.44 "
Size / Dimension [z]	124 mm	124 mm
Size / Dimension [z]	4.88 "	4.88 "
Standard Number	61010-2-201, Class I Div 2, 508, F47, 60950-1	61010-2-201, Class I Div 2, 508, F47, 60950-1
Voltage - Isolation	500 V	500 V
Voltage - Output 1	24 V	24 - 48 V

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Features	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Standard Number	Voltage - Output 1	Approval Agency	Input Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Current - Output (Max) [Max]	Applications
PULS, LP CT10.241	Adjustable Output, Load Sharing	576 VAC	323 VAC	508, 60950-1, 61010-2-201, Class I Div 2, F47	24 V	ABS, CSA, DNV GL, EAC, IEC, SEMI, UL	AC	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	500 V	70 °C	0 °C	1	240 W	10.8 A	ITE (Commercial)
PULS, LP CT10.481	Adjustable Output, Load Sharing	480 VAC	380 VAC	508, 60950-1, 61010-2-201, Class I Div 2	48 V	ABS, CSA, DNV GL, EAC, IEC, UL	AC	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	500 V	70 °C	-25 °C	1	240 W	5 A	ITE (Commercial)
PULS, LP CT10.241-C1	Adjustable Output, Conformal Coating, Load Sharing	576 VAC	323 VAC	508, 60950-1, 61010-2-201	24 V	ABS, DNV GL, EAC, IEC, UL	AC	4.61 "	62 mm	124 mm	4.88 "	117 mm	2.44 "	500 V	70 °C	-25 °C	1	240 W	10 A	ITE (Commercial)
