Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VNQ500PEPTR-E | VNQ500 Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 400 mA | 400 mA |
| Fault Protection | Over Temperature, UVLO, Current Limiting (Fixed) | Over Temperature, UVLO, Current Limiting (Fixed) |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | On/Off | On/Off |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 4 | 4 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |

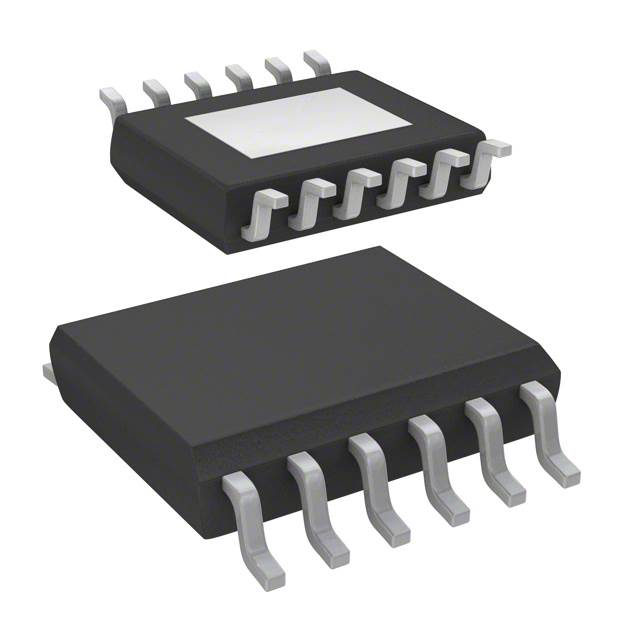

| Package / Case | 12-PowerLSOP | 12-PowerLSOP |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Supplier Device Package | PowerSSO-12 | PowerSSO-12 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Load [Max] | 36 V | 36 V |
| Voltage - Load [Min] | 5.5 V | 5.5 V |
| Voltage - Supply (Vcc/Vdd) | False | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
VNQ500 Series
Quad channel high-side driver
| Part | Ratio - Input:Output [custom] | Supplier Device Package | Number of Outputs | Mounting Type | Output Type | Voltage - Load [Min] | Voltage - Load [Max] | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Interface | Output Configuration | Switch Type | Input Type | Current - Output (Max) [Max] | Package / Case | Voltage - Supply (Vcc/Vdd) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNQ500PEPTR-E | 1:1 | PowerSSO-12 | 4 | Surface Mount | N-Channel | 5.5 V | 36 V | Current Limiting (Fixed), Over Temperature, UVLO | 150 °C | -40 °C | On/Off | High Side | General Purpose | Non-Inverting | 400 mA | 12-PowerLSOP | |
STMicroelectronics VNQ500PEPTR-E | |||||||||||||||||
STMicroelectronics VNQ500PEPTR-E | |||||||||||||||||
STMicroelectronics VNQ500PEPTR-E |
Description
General part information
VNQ500 Series
The VNQ500 is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground.
Active current limitation, combined with latched thermal shutdown, protect the device against overload.
In the case of over temperature of one channel the relative I/O pin is pulled down.
