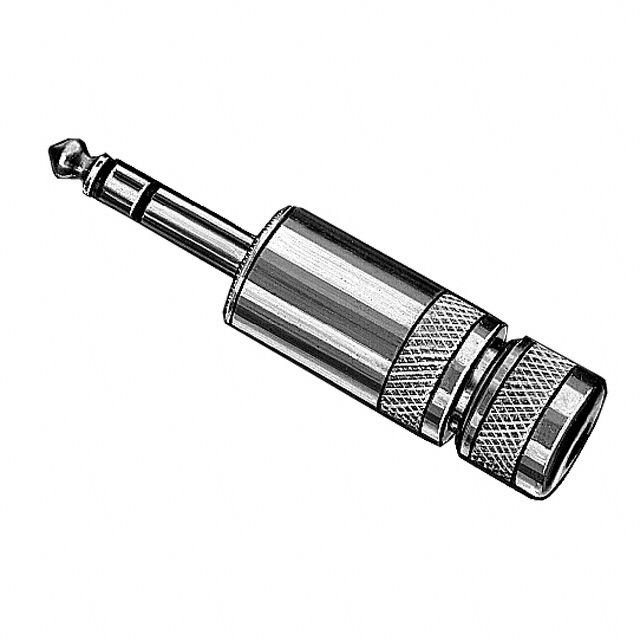

190A
ActiveSWITCHCRAFT/CONXALL
PHONE AUDIO CONNECTOR, PLUG, CABLE MOUNT, NICKEL PLATED CONTACTS, BRASS BODY
190A
ActiveSWITCHCRAFT/CONXALL
PHONE AUDIO CONNECTOR, PLUG, CABLE MOUNT, NICKEL PLATED CONTACTS, BRASS BODY
Description
General part information
190A
6.35mm (0.250", 1/4") - Headphone Phone Plug Stereo (3 Conductor, TRS) Connector Solder Eyelet(s)
Technical Specifications
Parameters and characteristics for this part
| Specification | 190A |
|---|---|
| Actual Diameter | 0.25 in |
| Body Color | Silver |
| Body Material | Brass |
| Cable Opening | 0.25 in |
| Connector Type | Phone Plug |
| Contact Material | Brass |
| Contact Material - Plating | Nickel |
| Gender | Male |
| Housing Material | Brass |
| Includes | Connector, Handle, Insulator Tube |
| Includes Total Count | 3 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Internal Switch(s) | Does Not Contain Switch |
| Mating Length/Depth | 1.21 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Conductors | 3 Conductors |
| Number of Contacts | 3 Contacts |
| Shielding | Shielded |
| Signal Lines | 3 Conductor, TRS, Stereo |
| Termination | Solder Eyelet(s) |
