Description
General part information

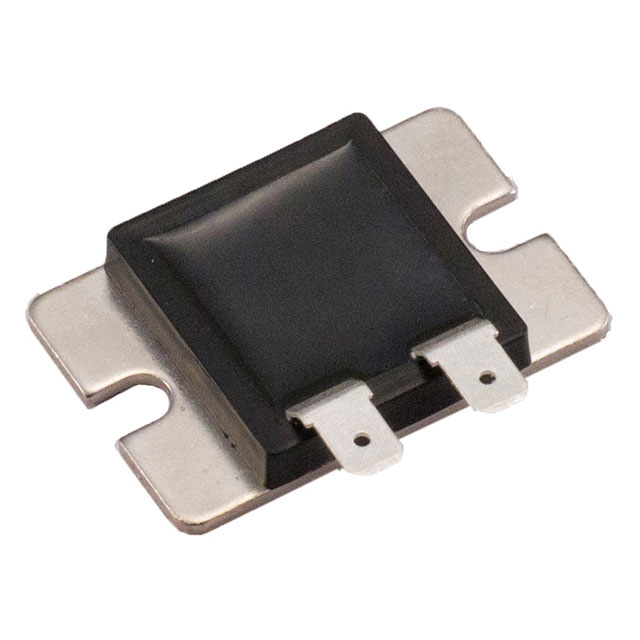

TGHMV5K00JE
5 kOhms ±5% 300W Thick Film Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | TGHMV5K00JE |
|---|---|
| Coating | Epoxy Coated |
| Composition | Thick Film |
| Height - Seated (Max) | 0.335 in |
| Housing Type | Epoxy Coated |
| Lead Style | Quick Connects |
| Lead Style Length | 0.228 in |
| Mounting Feature | Flanges |
| Operating Temperature (Max) | 175 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | SOT-227-2 |
| Power (Watts) | 300 W |
| Resistance | 5 kOhm |
| Size / Dimension Length | 1.496 in |
| Size / Dimension Width | 0.984 in |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 5 % |
