T4132012021-000
ActiveTE Connectivity AMP Connectors

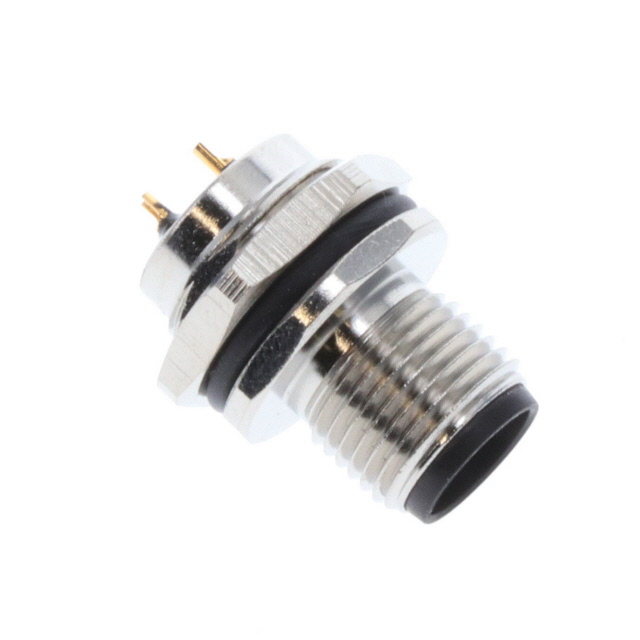

CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
T4132012021-000
ActiveTE Connectivity AMP Connectors
CONN RCPT MALE 2P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4132012021-000 | T41320 Series |
|---|---|---|
| Applications | Industrial | Industrial |
| Color | Silver | Silver |
| Connector Type | Receptacle, Male Pins | Receptacle, Male Pins, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 4 A | 2 - 4 A |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 2 | 2 - 8 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Copper Alloy | Copper Alloy |
| Shell Size - Insert | M12-2 | M12-2, M12-3, M12-8, M12-4 |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 250 VDC | 30 - 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.72 | |
| 10 | $ 5.02 | |||
| 25 | $ 4.88 | |||
| 50 | $ 4.78 | |||
| 100 | $ 4.49 | |||
| 250 | $ 4.46 | |||
| 500 | $ 4.18 | |||
| 1000 | $ 3.73 | |||
| 2500 | $ 3.47 | |||
T41320 Series
CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Shell Finish | Shell Size - Insert | Contact Finish - Mating | Shell Material | Orientation | Connector Type | Color | Shielding | Number of Positions | Material Flammability Rating | Mounting Feature | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating | Primary Material | Current Rating (Amps) | Insert Material | Applications | Contact Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4132012021-000 | Nickel | M12-2 | Gold | Copper Alloy | A | Male Pins, Receptacle | Silver | Unshielded | 2 | UL94 V-0 | Bulkhead - Rear Side Nut | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 250 VDC | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Industrial | Copper Alloy | 3 µin | 0.076 µm |
TE Connectivity AMP Connectors T4132012031-000 | Nickel | M12-3 | Gold | Copper Alloy | A | Male Pins, Receptacle | Silver | Unshielded | UL94 V-0 | Bulkhead - Rear Side Nut | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 250 VDC | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Industrial | Copper Alloy | 3 µin | 0.076 µm | |
TE Connectivity AMP Connectors T4132012081-000 | Nickel | M12-8 | Gold | Copper Alloy | A | Male Pins, Plug | Silver | Unshielded | 8 | Bulkhead - Rear Side Nut | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 30 VDC | Metal | 2 A | Polyamide (PA66), Nylon 6/6 | Industrial | Copper Alloy | |||
TE Connectivity AMP Connectors T4132012041-000 | Nickel | M12-4 | Gold | Copper Alloy | A | Male Pins, Receptacle | Silver | Unshielded | 4 | UL94 V-0 | Bulkhead - Rear Side Nut | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | 250 VDC | Metal | 4 A | Polyamide (PA66), Nylon 6/6 | Industrial | Copper Alloy | 3 µin | 0.076 µm |
Description
General part information
T41320 Series
2 Position Circular Connector Receptacle, Male Pins Solder Cup
