15-38-W

Active

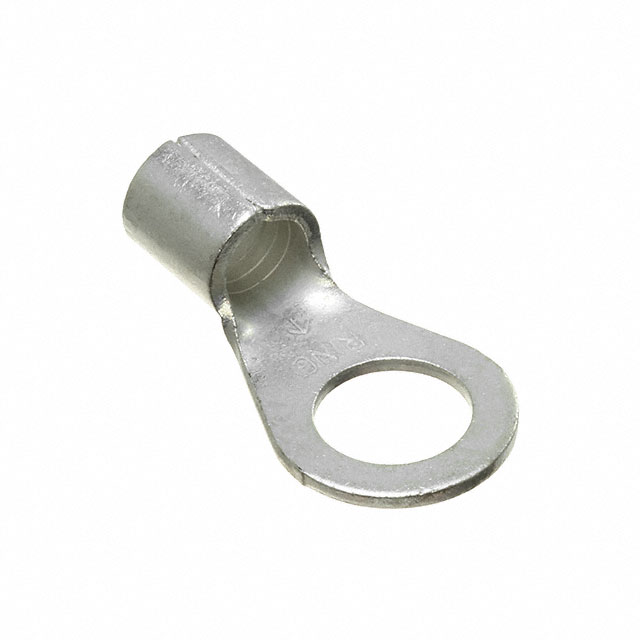

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Search across all available documentation for this part.

Active

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Technical Specifications

Parameters and characteristics for this part

NON-INSULATED BRAZED SEAM RING TONGUE TERMINAL

Part	Thickness	Thickness	Terminal Type	Insulation	Length - Overall [x]	Length - Overall [x]	Features	Width - Outer Edges [x]	Width - Outer Edges [x]	Contact Material	Contact Finish	Stud/Tab Size	Wire Gauge	Mounting Type	Termination
3M 15-38-W	50 mils	0.05 in	Circular	Non-Insulated	1.22 in	30.99 mm	Brazed Seam	16 mm	0.63 in	Copper, ETP	Tin	3/8 Stud	6 AWG	Free Hanging (In-Line)	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 3/8 Stud Circular 6 AWG Crimp
