L6-1-3057-9911-B-I
ActiveVisual Communications Company - VCC
PMI DIA .250" (6.35MM) BLUE 24V
Deep-Dive with AI
Search across all available documentation for this part.
L6-1-3057-9911-B-I
ActiveVisual Communications Company - VCC
PMI DIA .250" (6.35MM) BLUE 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L6-1-3057-9911-B-I |
|---|---|
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size | T-1 3/4 |
| Lens Size | 5 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 640 mcd |
| Panel Cutout Dimensions | 6.35 mm |
| Panel Cutout Dimensions | 0.25 " |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 6.000" (152.40mm) |
| Type | LED |
| Viewing Angle | 20 ° |
| Voltage | 3.3 V |
| Wavelength - Peak | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 4.78 | |
Description
General part information
L6-1-3057-9911-B-I

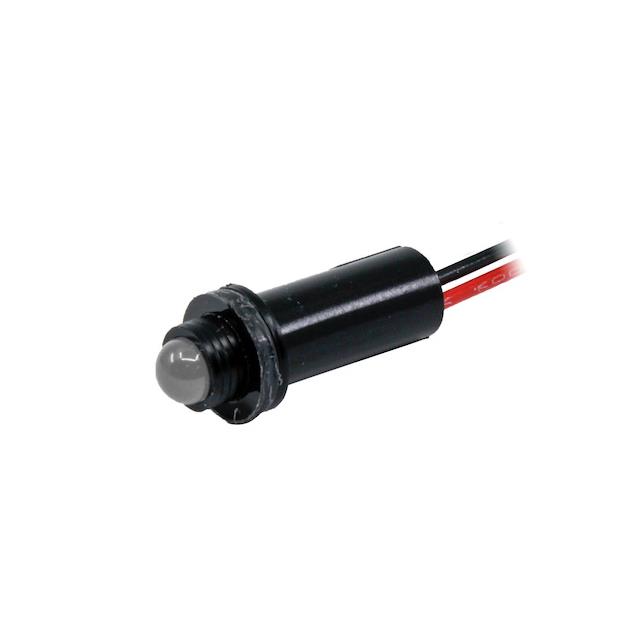

LED Panel Indicator Blue 20° 3.3V 20mA Wire Leads - 6.000" (152.40mm)
Documents
Technical documentation and resources
No documents available
