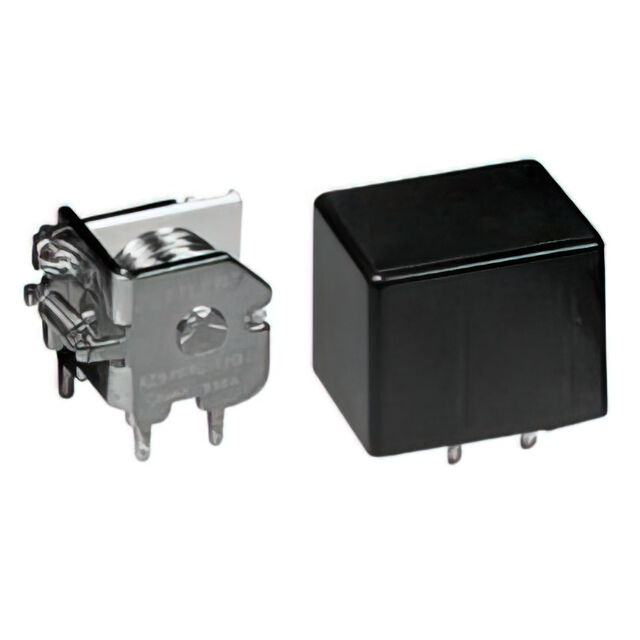

AZ971E-1A-24D
ActiveAmerican Zettler
RELAY AUTOMOTIVE SPST 45A 24V
AZ971E-1A-24D
ActiveAmerican Zettler
RELAY AUTOMOTIVE SPST 45A 24V
Description
General part information
AZ971E-1A-24D
RELAY AUTOMOTIVE SPST 45A 24V
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ971E-1A-24D |
|---|---|
| Coil Current | 66.3 mA |
| Coil Power | 1.6 W |
| Coil Resistance | 362 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 45 A |
| Form A Count | 1 |
| Mounting Type | Through Hole |
| Must Operate Voltage | 13.9 VDC |
| Must Release Voltage | 1.44 VDC |
| Operate Time | 5 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 3 ms |
| Switching Voltage DC (Max) | 75 VDC |
| Termination Style | PC Pin |
