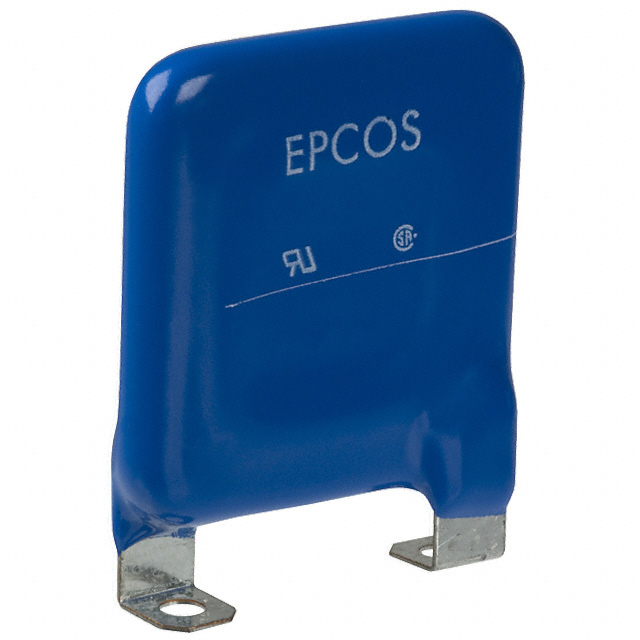

B72240L0321K100

Active

EPCOS - TDK Electronics

VARISTOR 510V 40KA SQUARE 37.5MM

Search across all available documentation for this part.

Active

EPCOS - TDK Electronics

VARISTOR 510V 40KA SQUARE 37.5MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

510 V 40 kA Varistor 1 Circuit Chassis Mount Square 37.5mm, Formed Tabs

Technical documentation and resources

Parameters and characteristics commom to parts in this series

VARISTOR 205V 40KA SQUARE 37.5MM

Part	Mounting Type	Maximum AC Volts [Max]	Varistor Voltage (Typ)	Number of Circuits	Varistor Voltage (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Energy	Maximum DC Volts [Max]	Capacitance @ Frequency	Varistor Voltage (Max)	Package / Case	Current - Surge	Varistor Voltage (Max) [Max]	Package / Case
EPCOS - TDK Electronics B72240L0131K100	Chassis Mount	130 V	205 V	1	184.5 V	85 C	-25 °C	310 J	170 V	5600 pF	225.5 V	Formed Tabs, Square 37.5mm	40 kA
EPCOS - TDK Electronics B72240L0551K100	Chassis Mount	550 V	910 V	1	819 V	85 C	-25 °C	960 J	745 V	1400 pF		Formed Tabs, Square 37.5mm	40 kA	1.001 kV
EPCOS - TDK Electronics B72240L0461K102	Chassis Mount	460 V	750 V	1	675 V	85 C	-25 °C	960 J	615 V	1600 pF			40 kA	825 V	37.5 mm
EPCOS - TDK Electronics B72240L0231K100	Chassis Mount	230 V	360 V	1	324 V			460 J	300 V			Formed Tabs, Square 37.5mm	40 kA	396 V
EPCOS - TDK Electronics B72240L0251K102	Chassis Mount	250 V	390 V	1	351 V	85 C	-25 °C	490 J	320 V				40 kA	429 V	37.5 mm
EPCOS - TDK Electronics B72240L0151K100	Chassis Mount	150 V	240 V	1	216 V	85 C	-25 °C	360 J	200 V	5200 pF		Formed Tabs, Square 37.5mm	40 kA	264 V
EPCOS - TDK Electronics B72240L0231K102	Chassis Mount	230 V	360 V	1	324 V			460 J	300 V				40 kA	396 V	37.5 mm
EPCOS - TDK Electronics B72240L0131K102	Chassis Mount	130 V	205 V	1	184.5 V			310 J	170 V		225.5 V		40 kA		37.5 mm
EPCOS - TDK Electronics B72240L0141K100	Chassis Mount	140 V	220 V	1	198 V			340 J	180 V			Formed Tabs, Square 37.5mm	40 kA	242 V
EPCOS - TDK Electronics B72240L0441K102	Chassis Mount	440 V	715 V	1	643.5 V	85 C	-25 °C	950 J	585 V	1700 pF			40 kA	786.5 V	37.5 mm
