WYO152MCMBLAKR
ActiveVishay Dale

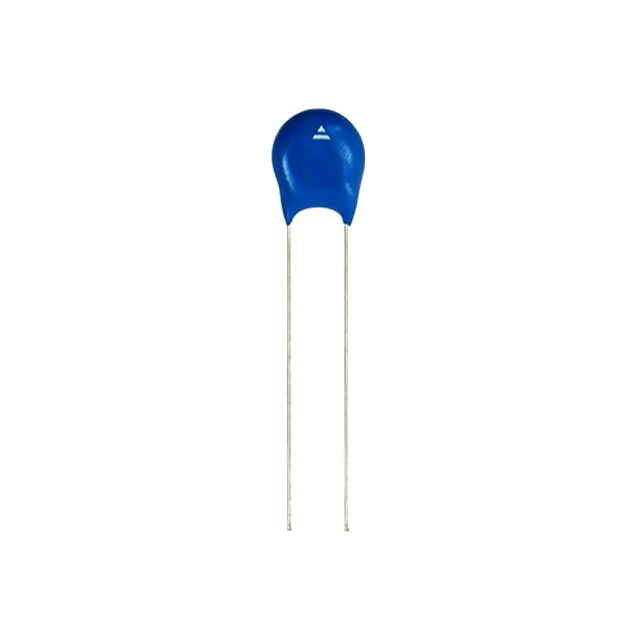

CAP CER 1500PF 440VAC Y5U RADIAL
WYO152MCMBLAKR
ActiveVishay Dale
CAP CER 1500PF 440VAC Y5U RADIAL
Description
General part information
WYO152MCMBLAKR
1500 pF ±20% 440VAC Ceramic Capacitor Y5U (E) Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | WYO152MCMBLAKR |
|---|---|
| Applications | Safety |
| Capacitance | 1500 pF |
| Height - Seated (Max) | 0.433 in |
| Lead Spacing | 0.197 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Ratings | Y2, X1 |
| Size / Dimension Diameter | 0.315 in |
| Temperature Coefficient | Y5U (E) |
| Tolerance | 20 % |
| Voltage - Rated | 440 V |
