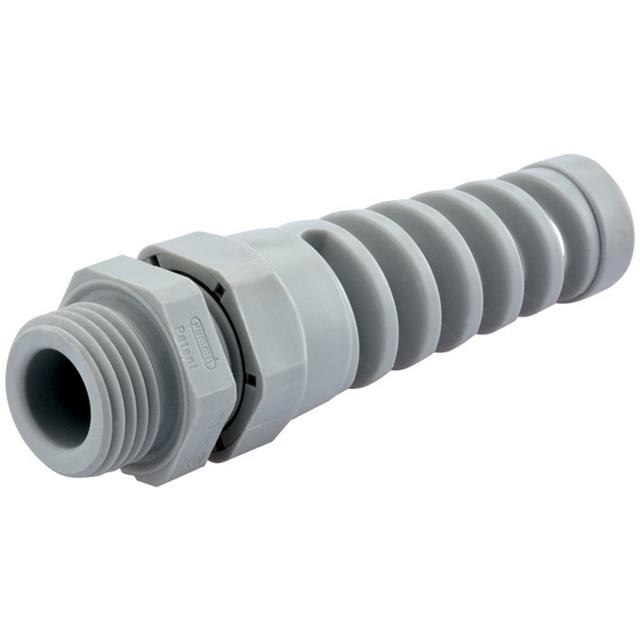

CF22MA-GY

Active

Sealcon

CABLE GLAND 9.91-13.97MM M20

Search across all available documentation for this part.

Active

Sealcon

CABLE GLAND 9.91-13.97MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	CF22MA-GY

Color	Gray
Ingress Protection	IP69K, IP68, NEMA 6, NEMA 4
Material	Polyamide (PA66), Nylon 6/6
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.55 in
Outside Cable Diameter (Max) [Max] [diameter]	13.97 mm
Outside Cable Diameter (Min) [Min] [diameter]	9.91 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.39 in
Panel Hole Size	20.1 mm
Panel Hole Size	0.79 in
Thread Length	0.39 in
Thread Length	9.91 mm
Thread Size	M20x1.5
Type	Cable Gland

CABLE GLAND 9.91-13.97MM M20

Part	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Ingress Protection	Type	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length
Sealcon CF22MA-GY	20.1 mm	0.79 in	0.55 in	13.97 mm	Gray	IP68, IP69K, NEMA 4, NEMA 6	Cable Gland	100 °C	-40 °C	M20x1.5	Polyamide (PA66), Nylon 6/6	9.91 mm	0.39 in	0.39 in	9.91 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	4	$ 3.18

General part information

Cable Gland Polyamide (PA66), Nylon 6/6 M20x1.5 Gray
