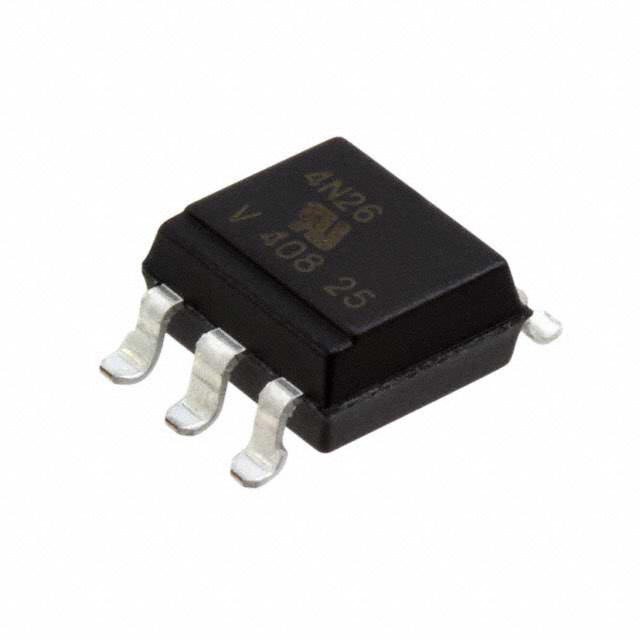

4N25-X009

Active

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6SMD

Search across all available documentation for this part.

Active

Vishay Semiconductor Opto Division

OPTOISO 5KV TRANS W/BASE 6SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor with Base Output 5000Vrms 1 Channel 6-SMD

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	4N25-X009	4N25 Series

Current - DC Forward (If) (Max) [Max]	60 mA	60 mA
Current - Output / Channel	50 mA	50 mA
Current Transfer Ratio (Min) [Min]	20 %	20 %
Input Type	DC	DC
Mounting Type	Surface Mount	Surface Mount, Through Hole
Number of Channels	1	1
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	6-SMD, Gull Wing	6-SMD, Gull Wing, 6-DIP
Package / Case	-	0.3 in
Package / Case	-	7.62 mm
Rise / Fall Time (Typ)	-	6.7 µs
Rise / Fall Time (Typ)	-	7 µs
Rise / Fall Time (Typ) [custom]	2 µs	2 µs
Rise / Fall Time (Typ) [custom]	2 µs	2 µs
Supplier Device Package	6-SMD	6-SMD, 6-DIP
Turn On / Turn Off Time (Typ)	-	7 - 11 µs
Vce Saturation (Max) [Max]	500 mV	300 - 500 mV
Voltage - Forward (Vf) (Typ)	1.36 V	1.3 - 1.36 V
Voltage - Output (Max) [Max]	70 V	32 - 70 V

OPTOISO 5KV TRANS W/BASE 6SMD

Part	Package / Case	Supplier Device Package	Input Type	Voltage - Forward (Vf) (Typ)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output (Max) [Max]	Vce Saturation (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Current Transfer Ratio (Min) [Min]	Mounting Type	Current - Output / Channel	Number of Channels	Package / Case	Package / Case	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Turn On / Turn Off Time (Typ)
Vishay Semiconductor Opto Division 4N25-X009T	6-SMD, Gull Wing	6-SMD	DC	1.36 V	100 °C	-55 °C	70 V	500 mV	2 µs	2 µs	60 mA	20 %	Surface Mount	50 mA	1
Vishay Semiconductor Opto Division 4N25	6-DIP	6-DIP	DC	1.3 V	100 °C	-55 °C	70 V	500 mV	2 µs	2 µs	60 mA	20 %	Through Hole	50 mA	1	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N25V	6-DIP	6-DIP	DC		100 °C	-55 °C	32 V	300 mV			60 mA	20 %	Through Hole	50 mA	1	0.3 in	7.62 mm	6.7 µs	7 µs	7 µs, 11 µs
Vishay Semiconductor Opto Division 4N25-X009	6-SMD, Gull Wing	6-SMD	DC	1.36 V	100 °C	-55 °C	70 V	500 mV	2 µs	2 µs	60 mA	20 %	Surface Mount	50 mA	1
Vishay Semiconductor Opto Division 4N25-X000	6-DIP	6-DIP	DC	1.36 V	100 °C	-55 °C	70 V	500 mV	2 µs	2 µs	60 mA	20 %	Through Hole	50 mA	1	0.3 in	7.62 mm
Vishay Semiconductor Opto Division 4N25-X017	6-SMD, Gull Wing	6-SMD	DC	1.36 V	100 °C	-55 °C	70 V	500 mV	2 µs	2 µs	60 mA	20 %	Surface Mount	50 mA	1
