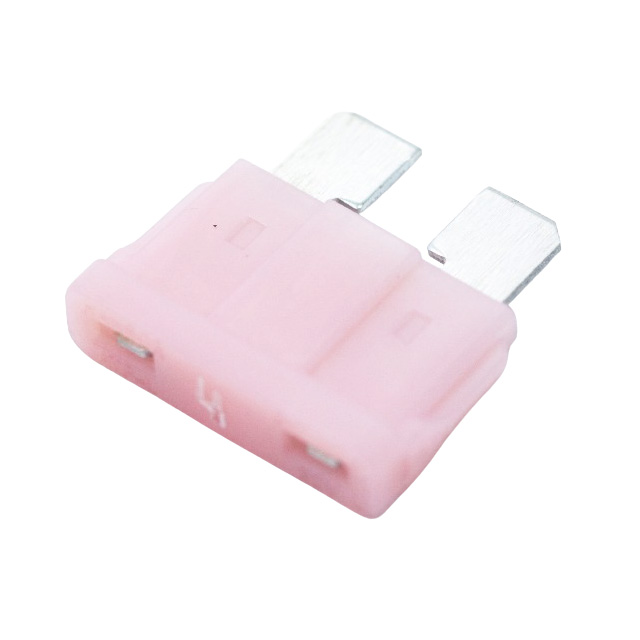

ANR-4A

Active

OptiFuse

FUSE AUTO 4A 32VDC BLADE ATO/ATC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 4A 32VDC BLADE ATO/ATC

Technical Specifications

Parameters and characteristics for this part

Specification	ANR-4A

Approval Agency	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA
Color	Pink
Current Rating (Amps)	4 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	ATO, Blade, ATC
Response Time	Fast Blow
Size / Dimension [x]	19.3 mm
Size / Dimension [x]	0.76 "
Size / Dimension [y]	0.197 "
Size / Dimension [y]	5 mm
Size / Dimension [z]	0.494 in
Size / Dimension [z]	12.54 mm
Voltage Rating - DC	32 V

FUSE AUTO 4A 32VDC BLADE ATO/ATC

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Voltage Rating - DC	Breaking Capacity @ Rated Voltage	Response Time	Mounting Type	Approval Agency	Package / Case	Color	Fuse Type
OptiFuse ANR-4A	0.494 in	0.197 "	12.54 mm	19.3 mm	0.76 "	5 mm	-40 °C	105 ░C	4 A	32 V	1 kA	Fast Blow	Requires Holder	ISO, SAE	ATC, ATO, Blade	Pink	Automotive

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 A AC 32 V DC Fuse Automotive Requires Holder Blade, ATO/ATC
