M7PXK-0906J

Active

D-SUB CABLE - MMM09K/MC10G/X

Search across all available documentation for this part.

Active

D-SUB CABLE - MMM09K/MC10G/X

Technical Specifications

Parameters and characteristics commom to parts in this series

D-SUB CABLE - MMM25K/MC26G/X

Part	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	1st Connector	Type	2nd Connector	Shielding	Length	Length	Number of Positions	Color
3M M7PXK-2510J	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB25	Individual Wire Leads	Unshielded	10 ft	3.05 m
3M M7PXK-1506R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB15	Individual Wire Leads	Unshielded	6 ft	1.83 m	15	Multiple, Ribbon
3M M7PXK-3706R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB37	Individual Wire Leads	Unshielded	6 ft	1.83 m	37	Multiple, Ribbon
3M M7PXK-1506J	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB15	Individual Wire Leads	Unshielded	6 ft	1.83 m	15
3M M7PXK-1510R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB15	Individual Wire Leads	Unshielded	10 ft	3.05 m	15	Multiple, Ribbon
3M M7PXK-3710R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB37	Individual Wire Leads	Unshielded	10 ft	3.05 m	37	Multiple, Ribbon
3M M7PXK-2506R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB25	Individual Wire Leads	Unshielded	6 ft	1.83 m		Multiple, Ribbon
3M M7PXK-2510R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB25	Individual Wire Leads	Unshielded	10 ft	3.05 m		Multiple, Ribbon
3M M7PXK-3710J	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB37	Individual Wire Leads	Unshielded	10 ft	3.05 m	37
3M M7PXK-0910R	Gold	0.76 Ám	30 Áin	Plug, Male Pins	DB9	Individual Wire Leads	Unshielded	10 ft	3.05 m	9	Multiple, Ribbon

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

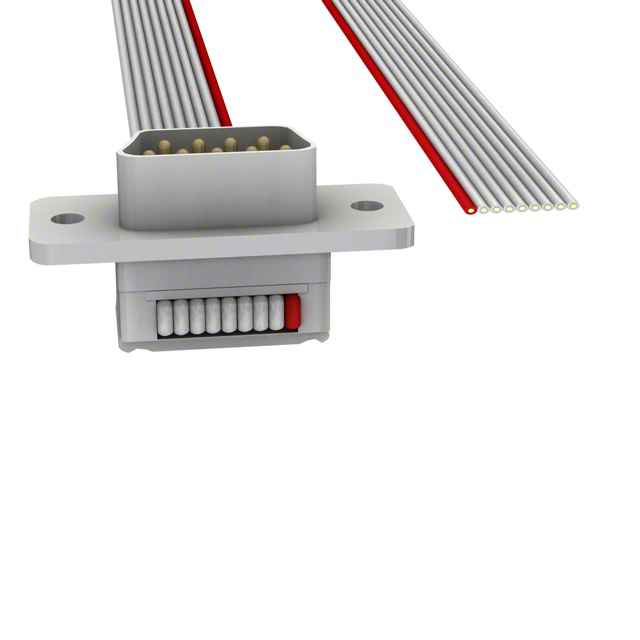

D-Sub Cable Assembly DB9 Gray, Ribbon 6.00' (1.83m) Plug, Male Pins to Individual Wire Leads Unshielded
