1412010
ActivePhoenix Contact
CONN MALE INSERT 4POS SOLDER
1412010
ActivePhoenix Contact
CONN MALE INSERT 4POS SOLDER
Description
General part information
1412010

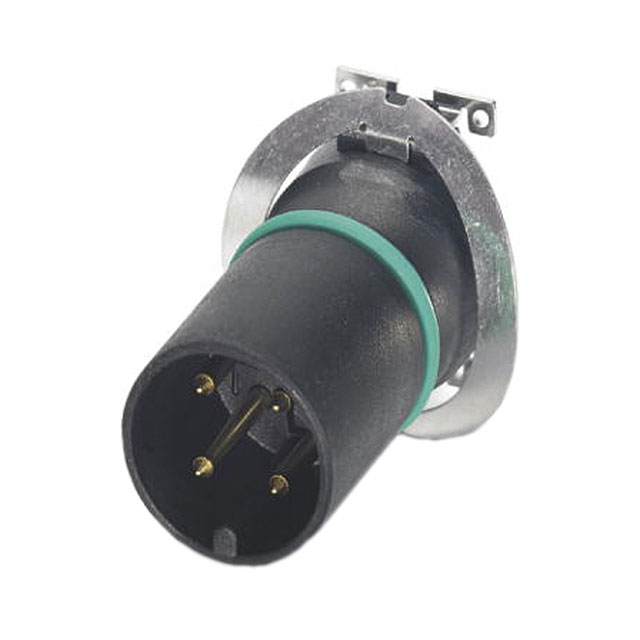

4 Position Circular Connector Insert, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412010 |
|---|---|
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 4 A |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Shell Size - Insert | M12-4 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 250 V |
