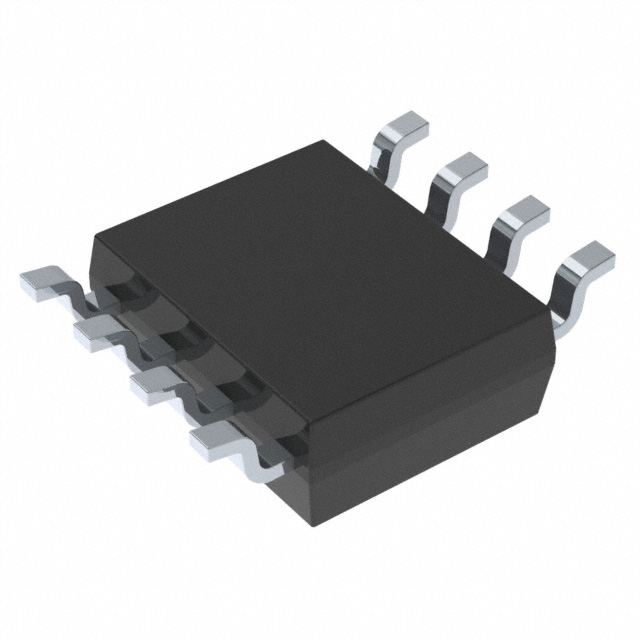

SST26VF016B-80E/SM
ActiveIC FLASH 16MBIT SPI/QUAD 8SOIJ
Deep-Dive with AI
Search across all available documentation for this part.
SST26VF016B-80E/SM
ActiveIC FLASH 16MBIT SPI/QUAD 8SOIJ
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SST26VF016B-80E/SM | SST26VF016 Series |
|---|---|---|
| Clock Frequency | 80 MHz | 80 - 104 MHz |
| Grade | - | Automotive |
| Memory Format | FLASH | FLASH |
| Memory Interface | SPI - Quad I/O | SPI - Quad I/O |
| Memory Organization | 2 M | 2 M |
| Memory Size | 16 Mb | 16 Mb |
| Memory Type | Non-Volatile | Non-Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 70 - 125 °C |
| Operating Temperature [Min] | -40 °C | -40 - 0 °C |
| Package / Case | 8-SOIC | 8-WDFN Exposed Pad, Die, 8-SOIC, 8-UDFN Exposed Pad |
| Package / Case [x] | 0.209 " | 0.154 - 0.209 in |
| Package / Case [y] | 5.3 mm | 3.9 - 5.3 mm |
| Qualification | - | AEC-Q100 |
| Supplier Device Package | 8-SOIJ | 8-WDFN (5x6), Wafer, 8-WSON (6x5), 8-SOIC, 8-USON (4x3), 8-SOIJ |
| Technology | FLASH | FLASH |
| Voltage - Supply [Max] | 3.6 V | 3.6 V |
| Voltage - Supply [Min] | 2.3 V | 2.3 - 2.7 V |
| Write Cycle Time - Word, Page [custom] | 1.5 ms | 1.5 ms |
| Write Cycle Time - Word, Page [custom] | 1.5 ms | 1.5 ms |
SST26VF016 Series
16Mbit 2.3-3.6V Serial Quad I/O (SQI) Flash
| Part | Mounting Type | Grade | Memory Interface | Technology | Operating Temperature [Min] | Operating Temperature [Max] | Memory Format | Memory Size | Package / Case | Memory Type | Qualification | Voltage - Supply [Min] | Voltage - Supply [Max] | Write Cycle Time - Word, Page [custom] | Write Cycle Time - Word, Page [custom] | Memory Organization | Supplier Device Package | Clock Frequency | Package / Case [y] | Package / Case [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology SST26VF016B-80E/MF70SVAO | Surface Mount | Automotive | SPI - Quad I/O | FLASH | -40 °C | 125 °C | FLASH | 16 Mb | 8-WDFN Exposed Pad | Non-Volatile | AEC-Q100 | 2.3 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-WDFN (5x6) | 80 MHz | ||
Microchip Technology SST26VF016B-104I/WF70S | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | Die | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | Wafer | 104 MHz | |||||
Microchip Technology SST26VF016-80-5I-QAE-T | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-WDFN Exposed Pad | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-WSON (6x5) | 80 MHz | ||||
Microchip Technology SST26VF016BT-104I/SN70SVAO | Surface Mount | Automotive | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-SOIC | Non-Volatile | AEC-Q100 | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-SOIC | 104 MHz | 3.9 mm | 0.154 in |
Microchip Technology SST26VF016BT-104I/SN | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-SOIC | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-SOIC | 104 MHz | 3.9 mm | 0.154 in | ||
Microchip Technology SST26VF016BT-104I/UB | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-UDFN Exposed Pad | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-USON (4x3) | 104 MHz | ||||
Microchip Technology SST26VF016BA-104I/MF | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-WDFN Exposed Pad | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-WDFN (5x6) | 104 MHz | ||||
Microchip Technology SST26VF016B-80E/SM | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 125 °C | FLASH | 16 Mb | 8-SOIC | Non-Volatile | 2.3 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-SOIJ | 80 MHz | 5.3 mm | 0.209 " | ||
Microchip Technology SST26VF016B-104I/SN | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-SOIC | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-SOIC | 104 MHz | 3.9 mm | 0.154 in | ||
Microchip Technology SST26VF016BEUIT-104I/SN | Surface Mount | SPI - Quad I/O | FLASH | -40 °C | 85 °C | FLASH | 16 Mb | 8-SOIC | Non-Volatile | 2.7 V | 3.6 V | 1.5 ms | 1.5 ms | 2 M | 8-SOIC | 104 MHz | 3.9 mm | 0.154 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 360 | $ 1.98 | |
Description
General part information
SST26VF016 Series
The SST26VF016B Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF016B also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF016B enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, Smart Home, Wireless Connectivity, Computing, Digital TV, Smart Meter, Datacenter, Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.
