NC6BR

Active

TPI (Test Products Int)

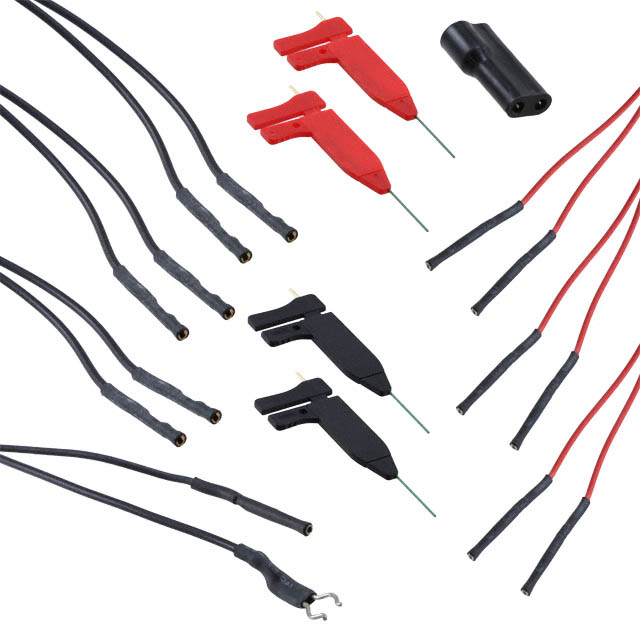

TEST LEAD NANO PINCER TO SOCKET

Search across all available documentation for this part.

Active

TPI (Test Products Int)

TEST LEAD NANO PINCER TO SOCKET

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NC6BR	NC6B Series

1st Connector	Nano Pincer	Nano Pincer
2nd Connector	Round, Socket	Round, Socket
2nd Connector [diameter]	0.64 mm	0.64 mm
2nd Connector [diameter]	0.025 in	0.025 in
Configuration	Hook to Socket, Grabber	Hook to Socket, Grabber
Contents	6 Leads and Clips, Black and Red, 1 Ground, Black	6 Clips, Blue, 6 Leads, Black and Red, 1 Ground, Black, 6 Leads and Clips, Black and Red
Current Rating (Amps)	300 mA	300 mA
Voltage - Rated	25 VDC	25 VDC

TEST LEAD NANO PINCER TO SOCKET

Part	Contents	Current Rating (Amps)	Configuration	1st Connector	2nd Connector [diameter]	2nd Connector	2nd Connector [diameter]	Voltage - Rated
TPI (Test Products Int) NC6BLUE	1 Ground, Black, 6 Clips, Blue, 6 Leads, Black and Red	300 mA	Grabber, Hook to Socket	Nano Pincer	0.64 mm	Round, Socket	0.025 in	25 VDC
TPI (Test Products Int) NC6BR	1 Ground, Black, 6 Leads and Clips, Black and Red	300 mA	Grabber, Hook to Socket	Nano Pincer	0.64 mm	Round, Socket	0.025 in	25 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Nano Pincer To Socket, Round, 0.025" (0.64mm) Test Lead 25VDC 6 Leads and Clips, Black and Red, 1 Ground, Black
