BC075-05-A-L-A

Active

GCT

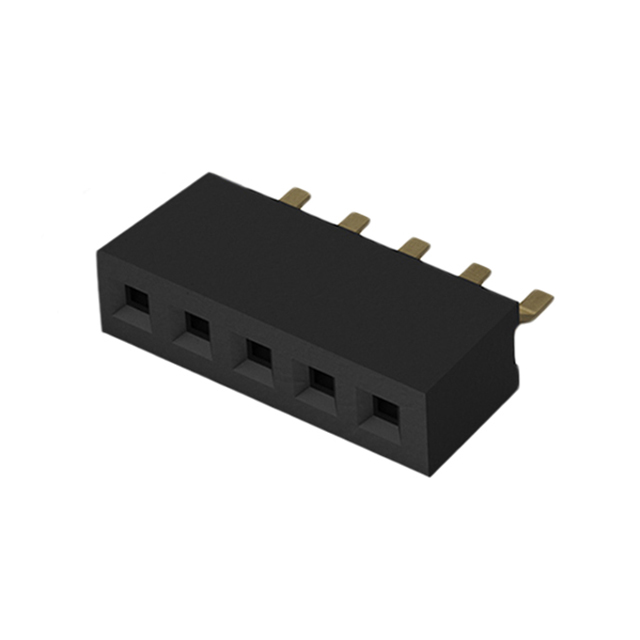

5POS 1.0MM PITCH SOCKET, SIL, SM

Search across all available documentation for this part.

Active

GCT

5POS 1.0MM PITCH SOCKET, SIL, SM

Technical Specifications

Parameters and characteristics for this part

Specification	BC075-05-A-L-A

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Termination	Solder
Voltage Rating	250 VDC

5POS 1.0MM PITCH SOCKET, SIL, SM

Part	Number of Positions Loaded	Mounting Type	Voltage Rating	Fastening Type	Material Flammability Rating	Contact Type	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Shape	Number of Rows	Contact Material	Insulation Color	Connector Type	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Current Rating (Amps)	Insulation Material	Contact Finish Thickness - Mating
GCT BC075-05-A-L-A	All	Surface Mount, Right Angle	250 VDC	Push-Pull	UL94 V-0	Female Socket	Flash	Gold	Square	1	Phosphor Bronze	Black	Receptacle	1.5 mm	0.059 "	-40 °C	105 ░C	Solder	0.039 in	1 mm	Gold	1 A	Liquid Crystal Polymer (LCP)	Flash

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Receptacle Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold
