W.FL-LP-04N1-A-(60)
ObsoleteHirose Electric Co Ltd
CBL ASSY W.FL PLUG 2.362"
W.FL-LP-04N1-A-(60)
ObsoleteHirose Electric Co Ltd
CBL ASSY W.FL PLUG 2.362"
Description
General part information
W.FL-LP-04N1-A-(60)

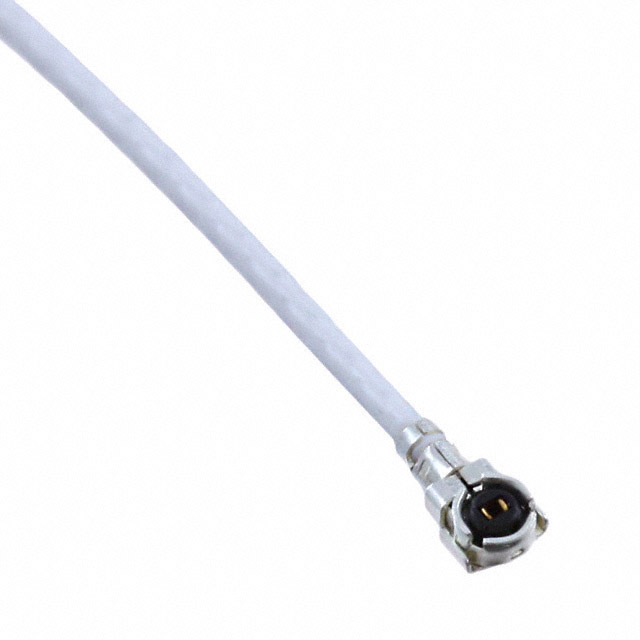

Cable Assembly Coaxial W.FL to W.FL 0.81mm OD Coaxial Cable 2.362" (60.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | W.FL-LP-04N1-A-(60) |
|---|---|
| 1st Connector | W.FL Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | Cable (Round) |
| Cable Outer Diameter | 0.81 mm |
| Cable Type | Coaxial Cable, 0.81mm OD Coaxial Cable, OD Coaxial Cable |
| Cable Type Size | 0.81 mm |
| Color | White |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length | 2.362 in |
| Operating Temperature (Max) | 90 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | W.FL |
