5-104895-3
ActiveTE Connectivity AMP Connectors

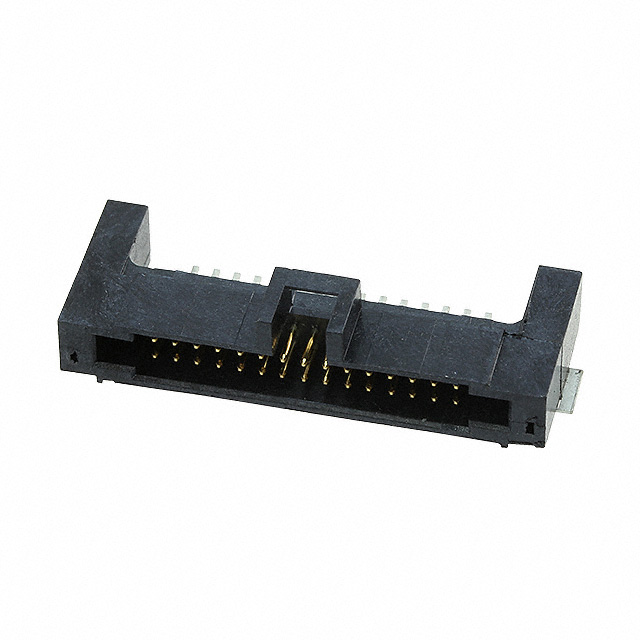

CONN HEADER SMD R/A 30POS 1.27MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-104895-3
ActiveTE Connectivity AMP Connectors
CONN HEADER SMD R/A 30POS 1.27MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-104895-3 | 104895 Series |
|---|---|---|
| Applications | Military, Telecommunications, General Purpose, Automotive, Medical | Military, Telecommunications, General Purpose, Automotive, Medical |
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Tin-Lead | Tin, Tin-Lead |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 150 Áin | 150 Áin |
| Contact Finish Thickness - Post | 3.81 Ám | 3.81 Ám |
| Contact Material | Brass | Brass |
| Contact Shape | Circular | Circular |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 500 mA | 500 mA |
| Fastening Type | Latch Holder | Latch Holder |
| Features | Board Lock, Solder Retention | Board Lock, Solder Retention |
| Insulation Color | Black | Black |
| Insulation Height | 5.4 mm | 5.4 mm |
| Insulation Height [z] | 0.213 in | 0.213 in |
| Insulation Material | Liquid Crystal Polymer (LCP) | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions | 30 | 30 - 50 |
| Number of Positions Loaded | All | All |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
| Pitch - Mating | 0.05 in | 0.05 in |
| Pitch - Mating | 1.27 mm | 1.27 mm |
| Row Spacing - Mating | 0.05 in | 0.05 in |
| Row Spacing - Mating | 1.27 mm | 1.27 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1296 | $ 5.47 | |
104895 Series
CONN HEADER SMD R/A 50POS 1.27MM
| Part | Insulation Height | Insulation Height [z] | Current Rating (Amps) | Termination | Number of Rows | Contact Finish - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Positions | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Contact Shape | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Fastening Type | Shrouding | Contact Finish - Mating | Insulation Color | Pitch - Mating | Pitch - Mating | Applications | Connector Type | Contact Type | Number of Positions Loaded | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 5-104895-5 | 5.4 mm | 0.213 in | 500 mA | Solder | 2 | Tin | 30 Áin | 0.76 Ám | Board Lock, Solder Retention | 50 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 150 Áin | 3.81 Ám | Brass | Circular | -65 ░C | 105 ░C | UL94 V-0 | Latch Holder | Shrouded - 4 Wall | Gold | Black | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Military, Telecommunications | Header | Male Pin | All | Surface Mount, Right Angle |
TE Connectivity AMP Connectors 5-104895-4 | 5.4 mm | 0.213 in | 500 mA | Solder | 2 | Tin-Lead | 30 Áin | 0.76 Ám | Board Lock, Solder Retention | 40 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 150 Áin | 3.81 Ám | Brass | Circular | -65 ░C | 105 ░C | UL94 V-0 | Latch Holder | Shrouded - 4 Wall | Gold | Black | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Military, Telecommunications | Header | Male Pin | All | Surface Mount, Right Angle |
TE Connectivity AMP Connectors 104895-5 | 5.4 mm | 0.213 in | 500 mA | Solder | 2 | Tin-Lead | 30 Áin | 0.76 Ám | Board Lock, Solder Retention | 50 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 150 Áin | 3.81 Ám | Brass | Circular | -65 ░C | 105 ░C | UL94 V-0 | Latch Holder | Shrouded - 4 Wall | Gold | Black | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Military, Telecommunications | Header | Male Pin | All | Surface Mount, Right Angle |
TE Connectivity AMP Connectors 5-104895-3 | 5.4 mm | 0.213 in | 500 mA | Solder | 2 | Tin-Lead | 30 Áin | 0.76 Ám | Board Lock, Solder Retention | 30 | 0.05 in | 1.27 mm | Liquid Crystal Polymer (LCP) | 150 Áin | 3.81 Ám | Brass | Circular | -65 ░C | 105 ░C | UL94 V-0 | Latch Holder | Shrouded - 4 Wall | Gold | Black | 0.05 in | 1.27 mm | Automotive, General Purpose, Medical, Military, Telecommunications | Header | Male Pin | All | Surface Mount, Right Angle |
Description
General part information
104895 Series
Connector Header Surface Mount, Right Angle 30 position 0.050" (1.27mm)
