MMF405374
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-06-062UTA-350/SP35 - STRAIN
MMF405374
ActiveMicro-Measurements (Division of Vishay Precision Group)
CEA-06-062UTA-350/SP35 - STRAIN
Description
General part information
MMF405374

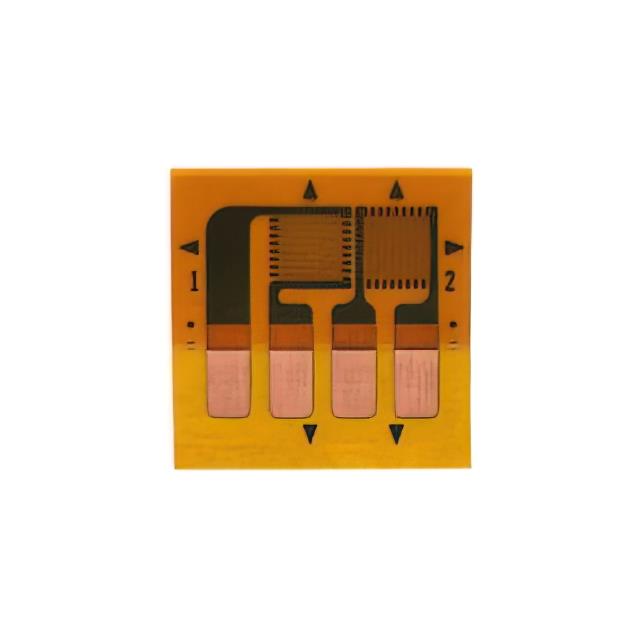

Tee Rosette Strain Gauge ±3% 0.062" (1.57mm) 0.080" (2.03mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | MMF405374 |
|---|---|
| Length - Active | 0.062 in |
| Length - Overall | 0.31 in |
| Length - Overall Pattern | 0.205 in |
| Length - Overall Pattern (mm) | 5.21 mm |
| Operating Temperature (Max) | 347 °F |
| Operating Temperature (Min) | -103 °F |
| Pattern Type | Tee Rossette |
| Resistance | 350 Ohm |
| Resistance Tolerance (%) | 0.2 % |
| Strain Range | 3 % |
| Width - Active | 0.08 in |
| Width - Overall | 0.31 in |
| Width - Overall Pattern | 0.225 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
