EN2C3M20DC

Active

Switchcraft Inc.

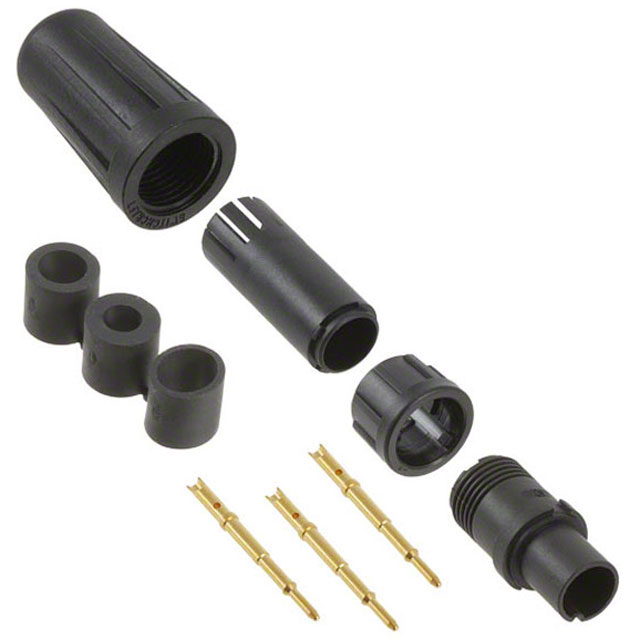

STANDARD CIRCULAR CONNECTOR 3-20 M S/C CORD CON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C3M20DC

Active

Switchcraft Inc.

STANDARD CIRCULAR CONNECTOR 3-20 M S/C CORD CON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C3M20DC	EN2C3M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.54 - 3.56 mm
Cable Opening	-	0.1 - 0.14 in
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	2 A	2 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C3M Series

CONN PLUG MALE 3POS GOLD CRIMP

Part	Applications	Contact Material	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Features	Cable Opening [custom]	Cable Opening [custom]	Connector Type	Fastening Type	Voltage Rating	Ingress Protection	Contact Finish - Mating	Primary Material	Current Rating (Amps)	Color	Mounting Type	Orientation	Insert Material	Backshell Material, Plating	Shielding	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]
Switchcraft Inc. EN2C3M20G1W	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut, Winged	2.54 mm, 3.56 mm	0.1 in, 0.14 in	Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup
Switchcraft Inc. EN2C3M20G1	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut	2.54 mm, 3.56 mm	0.1 in, 0.14 in	Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup
Switchcraft Inc. EN2C3M20G2W	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut, Winged			Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C3M20G3W	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut, Winged			Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup					0.18 in	0.22 in	4.57 mm	5.59 mm
Switchcraft Inc. EN2C3M20DCW	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut, Winged			Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup
Switchcraft Inc. EN2C3M20DC	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut			Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup
Switchcraft Inc. EN2C3M20G3	Communication Systems, Industrial, Marine, Medical	Copper Alloy	UL94 V-0	85 °C	-40 °C	Backshell, Coupling Nut			Male Pins, Plug	Bayonet Lock	125 VAC	IP66, IP67, IP68	Gold	Plastic	2 A	Black	Free Hanging (In-Line)	Keyed	Elastomer	Thermoplastic	Unshielded	Crimp, Solder Cup					0.18 in	0.22 in	4.57 mm	5.59 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.58
		10	$ 8.89
		25	$ 8.03
		50	$ 7.45
		100	$ 6.93
		300	$ 6.19
		500	$ 5.89
		1000	$ 5.51
Sager	N/A	1	$ 7.60
		55	$ 7.28
		110	$ 6.90
		219	$ 6.72
		439	$ 6.64

Description

General part information

EN2C3M Series

3 Position Circular Connector Plug, Male Pins Crimp or Solder Cup
