7-340-3PP-BA

Active

CTS Thermal Management Products

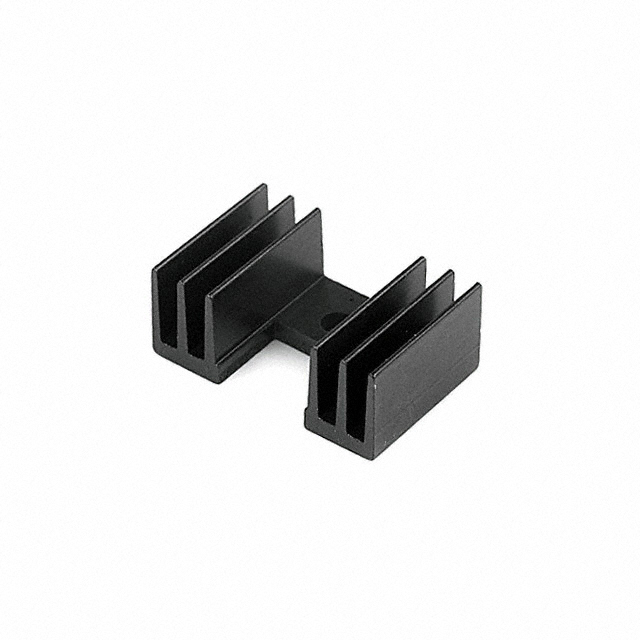

HEATSINK PWR HORZ BLACK TO-220

Search across all available documentation for this part.

Active

CTS Thermal Management Products

HEATSINK PWR HORZ BLACK TO-220

Technical Specifications

Parameters and characteristics for this part

Specification	7-340-3PP-BA

Attachment Method	Bolt On
Fin Height [z]	0.46 in
Fin Height [z]	11.68 mm
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	40 °C, 3 W
Shape	Rectangular, Fins
Thermal Resistance @ Natural	15 °C/W
Type	Board Level
Width [y]	29.21 mm
Width [y]	1.15 in

HEATSINK PWR HORZ BLACK TO-220

Part	Shape	Length	Length	Material Finish	Width [y]	Width [y]	Package Cooled	Thermal Resistance @ Natural	Attachment Method	Material	Type	Fin Height [z]	Fin Height [z]	Power Dissipation @ Temperature Rise
CTS Thermal Management Products 7-340-3PP-BA	Rectangular, Fins	19.05 mm	0.75 in	Black Anodized	29.21 mm	1.15 in	TO-220	15 °C/W	Bolt On	Aluminum	Board Level	0.46 in	11.68 mm	3 W, 40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 3.0W @ 40°C Board Level
