Description
General part information

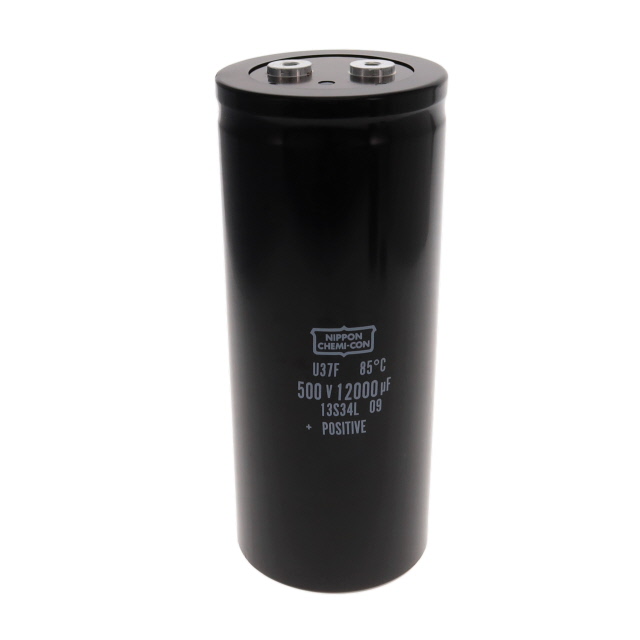

E37F501CPN123MFM9U
12000 µF 500 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 8mOhm @ 120Hz 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | E37F501CPN123MFM9U |
|---|---|
| Applications | General Purpose |
| Capacitance | 12000 µF |
| ESR (Equivalent Series Resistance) | 8 mOhm |
| Height - Seated (Max) | 8.661 in |
| Lead Spacing | 1.252 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 47.235 A, 33.5 A |
| Size / Dimension Diameter | 3.504 in |
| Tolerance | 20 % |
| Voltage - Rated | 500 V |
