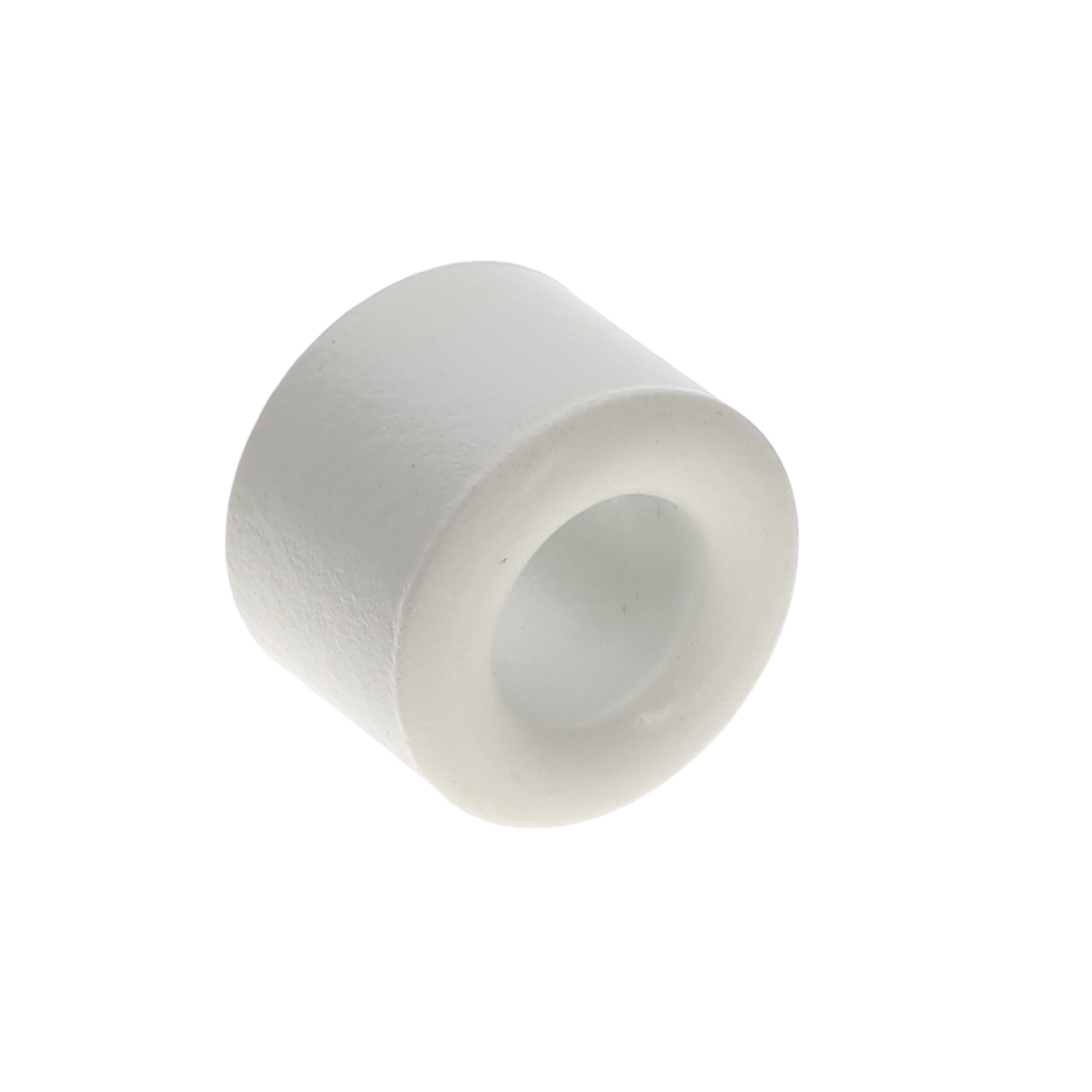

TX26/15/20-3E12
ActiveFerroxcube
FERRITE CORE TOROID
TX26/15/20-3E12
ActiveFerroxcube
FERRITE CORE TOROID
Description
General part information
TX26/15/20-3E12
Epoxy Ferrite Core Toroid Type Length Width 1.061" (26.95mm) Diameter 0.827" (21.00mm) Height
Technical Specifications
Parameters and characteristics for this part
| Specification | TX26/15/20-3E12 |
|---|---|
| Core Factor (ΣI/A) | 0.538 mm⁻² |
| Core Factor (ΣI/A) mm⁻¹ | 0.538 mm⁻¹ |
| Core Type | Toroid |
| Diameter | 1.061 in |
| Effective Area (Ae) | 112 mm² |
| Effective Length (le) | 60.1 mm |
| Effective Magnetic Volume (Ve) | 6720 mm³ |
| Effective Permeability (µe) | 12000 |
| Finish | Epoxy |
| Gap | Ungapped |
| Height | 0.827 in |
| Package Height | 20 mm |
| Package Length | 26 mm |
| Package Name | TX |
| Package Width | 15 mm |
| Tolerance | 30 % |
