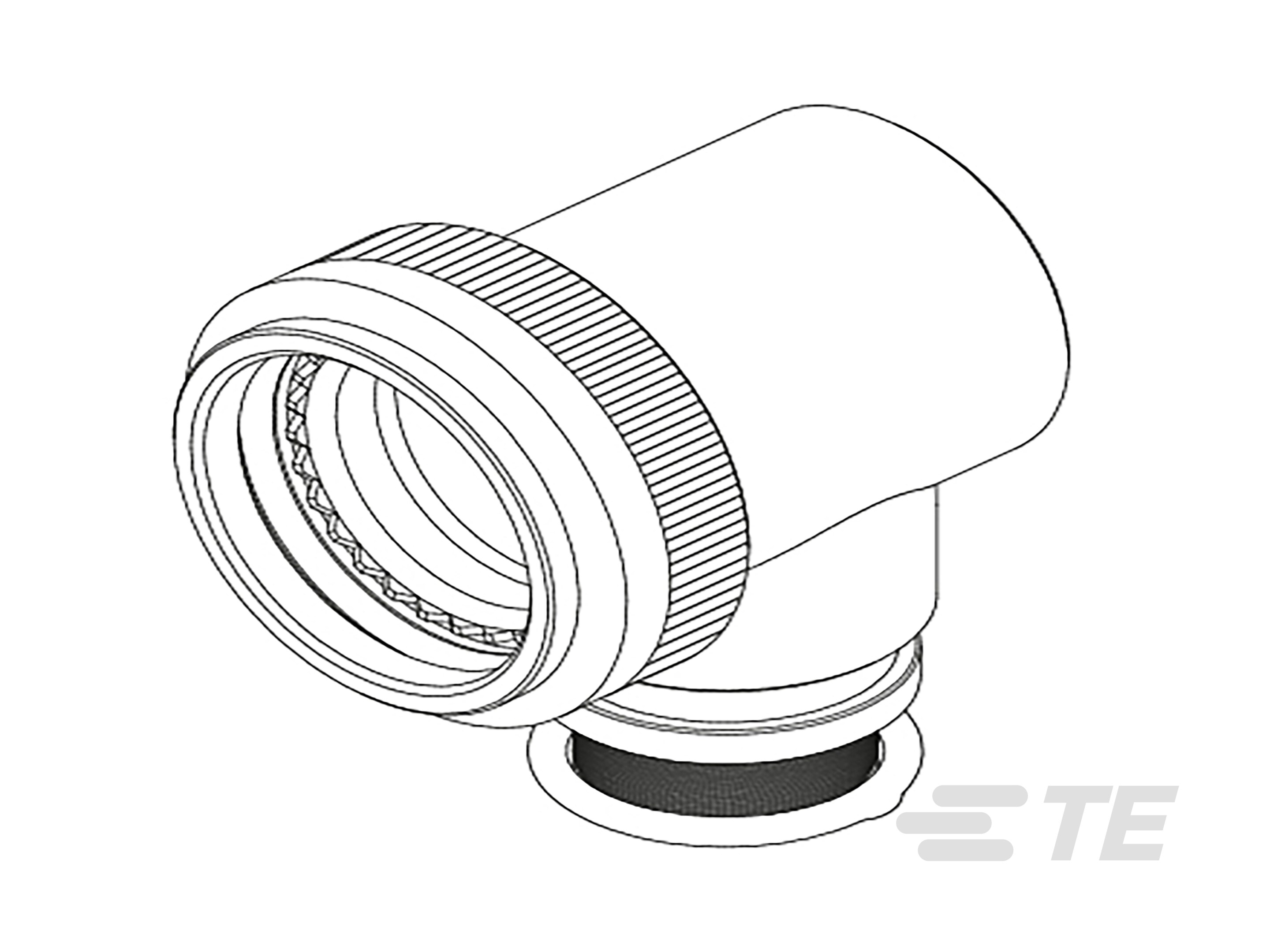

TXR40AB90-2212AI

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL ADPT SZ23 H M34

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAdapter Catalog Section 6 Datasheet

TXR40AB90-2212AI

Active

TE Connectivity Raychem Cable Protection

CONN BACKSHELL ADPT SZ23 H M34

Deep-Dive with AI

DocumentsAdapter Catalog Section 6 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TXR40AB90-2212AI

Cable Exit	90 °
Color	Olive Drab
Diameter - Outside [diameter]	1.575 in
Diameter - Outside [diameter]	40 mm
Features	Tinel Lock
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs
Ingress Protection	Environment Resistant
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	H
Shell Size - Insert	23
Shielding	Shielded
Thread Size	M34x1
Type	Backshell, Heat Shrink Adapter

RAYCHEM TXR Series

...

Part	Thread Size	Type	Plating	Shell Size - Insert	Shell Size - Insert	Material	Cable Exit	Includes	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Features	Ingress Protection	Color	Shielding	For Use With/Related Products	Thread Size	Includes
TE Connectivity Raychem Cable Protection TXR40AB00-1012BI	M15x1	Backshell Heat Shrink Adapter	Cadmium	B	11	Aluminum Alloy	180 °	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	0.827 in	21 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV
TE Connectivity Raychem Cable Protection TXR18AB00B2007AI	1 1/8-18 UNEF	Backshell Heat Shrink Adapter	Cadmium		20	Aluminum Alloy	180 °	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	1.48 in	37.59 mm	Tinel Lock		Olive Drab	Unshielded	Bendix 10-214 Cannon CA-RX MIL-DTL-5015D Class A E R Connectors
TE Connectivity Raychem Cable Protection TXR18AB00-2216AI2	UNEF	Backshell Heat Shrink Adapter	Cadmium		22	Aluminum Alloy	180 °	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	1.598 in	40.6 mm	Tinel Lock		Olive Drab	Unshielded	Bendix 10-214 Cannon CA-RX MIL-DTL-5015D Class A E R Connectors	18
TE Connectivity Raychem Cable Protection TXR54AB90-2214BI	1 5/16-18 UNEF	Backshell Heat Shrink Adapter	Cadmium		22	Aluminum Alloy	90 °	1 Backshell 1 Braid 1 Tinel Ring	1.468 "	37.29 mm	Tinel Lock		Olive Drab	Shielded	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I
TE Connectivity Raychem Cable Protection TXR41AB00-1412AI	13/16-20 UNEF	Backshell Heat Shrink Adapter	Cadmium		14 15	Aluminum Alloy	180 °	1 Braid 1 Tinel Ring 2 O-Rings 2 pc Backshell	1.094 "	27.79 mm	Tinel Lock		Olive Drab	Shielded	MIL-DTL-38999 Series I II
TE Connectivity Raychem Cable Protection TXR54AB90-2012AI-CS2196	1 3/16-18 UNEF	Backshell Heat Shrink Adapter	Cadmium		20 37	Aluminum Alloy	90 °	1 Backshell 1 Braid 1 Tinel Ring	1.343 in	34.1 mm	Tinel Lock		Olive Drab	Shielded	III MIL-C-5015G MS3400 Series MIL-C-81703 Series III MIL-DTL-26482 Series II MIL-DTL-83723 Series I
TE Connectivity Raychem Cable Protection TXR32AB00-2212AI	1 3/8-18 UNEF	Backshell Heat Shrink Adapter	Cadmium		22	Aluminum Alloy	180 °	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	1.689 in	42.9 mm	Tinel Lock		Olive Drab	Shielded	MIL-DTL-22992 Connectors
TE Connectivity Raychem Cable Protection TXR40AB90-2212AI	M34x1	Backshell Heat Shrink Adapter	Cadmium	H	23	Aluminum Alloy	90 °		1.575 in	40 mm	Tinel Lock	Environment Resistant	Olive Drab	Shielded	MIL-DTL-38999 Series III IV		1 pcs 1 pcs 1 pcs 1 pcs
TE Connectivity Raychem Cable Protection TXR40BW00-1407AI
TE Connectivity Raychem Cable Protection TXR21AB00-1610AI	15/16-20 UNEF	Backshell Heat Shrink Adapter	Cadmium		16	Aluminum Alloy	180 °	1 Backshell 1 Braid 1 O-Ring 1 Tinel Ring 2 Screws	1.222 in	31.05 mm	Tinel Lock		Olive Drab	Shielded	MIL-DTL-26482 Series I Class E F Connectors

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 310.04

Description

General part information

RAYCHEM TXR Series

Olive Drab Connector Backshell, Heat Shrink Adapter M34x1 23, H

Documents

Technical documentation and resources

Adapter Catalog Section 6

Datasheet
