Description
General part information
PE9654

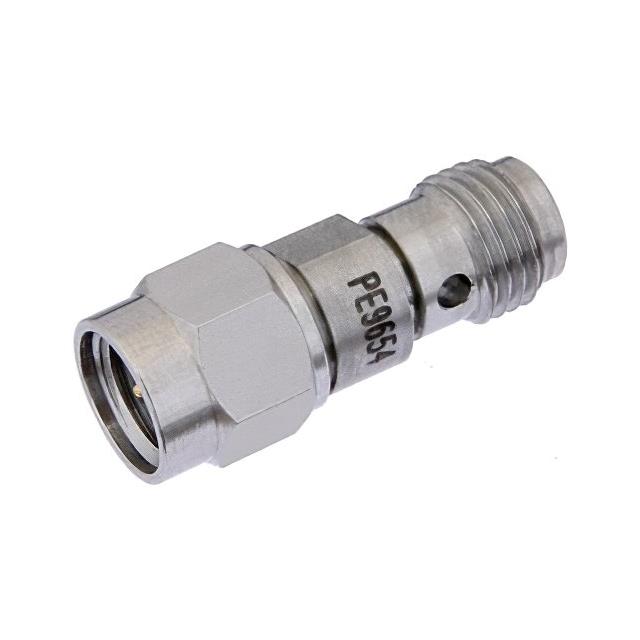

Adapter Coaxial Connector SMA Plug, Male Pin To 2.4mm (APC-2.4, OS-50) Jack, Female Socket 50 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | PE9654 |
|---|---|
| Adapter Series | SMA |
| Adapter Series Size | 2.4 mm |
| Adapter Type | Plug to Jack |
| Body Finish | Passivated |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Center Gender | Male, Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) | Male Pin, SMA Plug |
| Convert To (Adapter End) | Female Socket, Jack |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Model | APC-2.4, OS-50 |
| Convert To (Adapter End) Series | OS-50, APC-2.4 |
| Convert To (Adapter End) Size | 2.4 mm |
| Convert To (Adapter End) Type | Jack, Female Socket, 2.4mm (APC-2.4, OS-50) Jack |
| Fastening Type | Threaded |
| Frequency - Max | 26.5 GHz |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -65 °C |
| Style | Straight |
