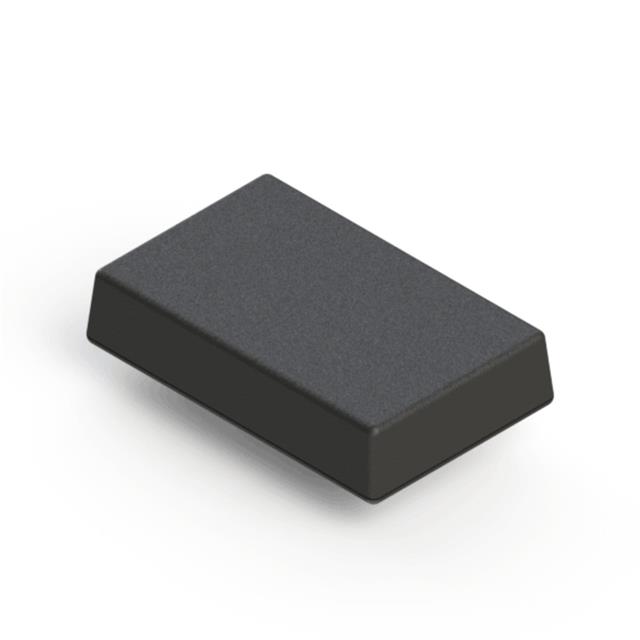

021,BK

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.1"L X 2.6"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	021,BK	021 Series

Area (L x W)	10.7 in²	10.7 in²
Area (L x W)	69 cm²	69 cm²
Color	Black	Almond, Black, Gray
Container Type	Box	Box
Design	Cover Included, Hand Held	Cover Included, Hand Held
Features	PCB Supports	PCB Supports
Height [z]	22.86 mm	22.86 mm
Height [z]	0.9 in	0.9 in
Material	Plastic, ABS	Plastic, ABS
Material Flammability Rating	UL94 HB	UL94 HB
Ratings	IP40, NEMA 1	IP40, NEMA 1
Size / Dimension [x]	104.14 mm	104.14 mm
Size / Dimension [x]	4.1 "	4.1 "
Size / Dimension [y]	2.6 "	2.6 "
Size / Dimension [y]	66.04 mm	66.04 mm
Thickness	2.54 mm	2.54 mm
Thickness	0.1 in	0.1 in
Weight	0.121 lb	0.121 lb
Weight	54.88 g	54.88 g

BOX ABS ALMOND 4.1"L X 2.6"W

Part	Material Flammability Rating	Color	Area (L x W)	Area (L x W)	Design	Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Features	Thickness	Thickness	Container Type	Height [z]	Height [z]	Weight	Weight	Ratings
Serpac 021,AL	UL94 HB	Almond	10.7 in²	69 cm²	Cover Included, Hand Held	Plastic, ABS	2.6 "	66.04 mm	104.14 mm	4.1 "	PCB Supports	2.54 mm	0.1 in	Box	22.86 mm	0.9 in	0.121 lb	54.88 g	IP40, NEMA 1
Serpac 021,BK	UL94 HB	Black	10.7 in²	69 cm²	Cover Included, Hand Held	Plastic, ABS	2.6 "	66.04 mm	104.14 mm	4.1 "	PCB Supports	2.54 mm	0.1 in	Box	22.86 mm	0.9 in	0.121 lb	54.88 g	IP40, NEMA 1
Serpac 021,GY	UL94 HB	Gray	10.7 in²	69 cm²		Plastic, ABS	2.6 "	66.04 mm	104.14 mm	4.1 "	PCB Supports	2.54 mm	0.1 in	Box	22.86 mm	0.9 in	0.121 lb	54.88 g	IP40, NEMA 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Cover Included 4.100" L x 2.600" W (104.14mm x 66.04mm) X 0.900" (22.86mm)
